LUNATIC (GR)

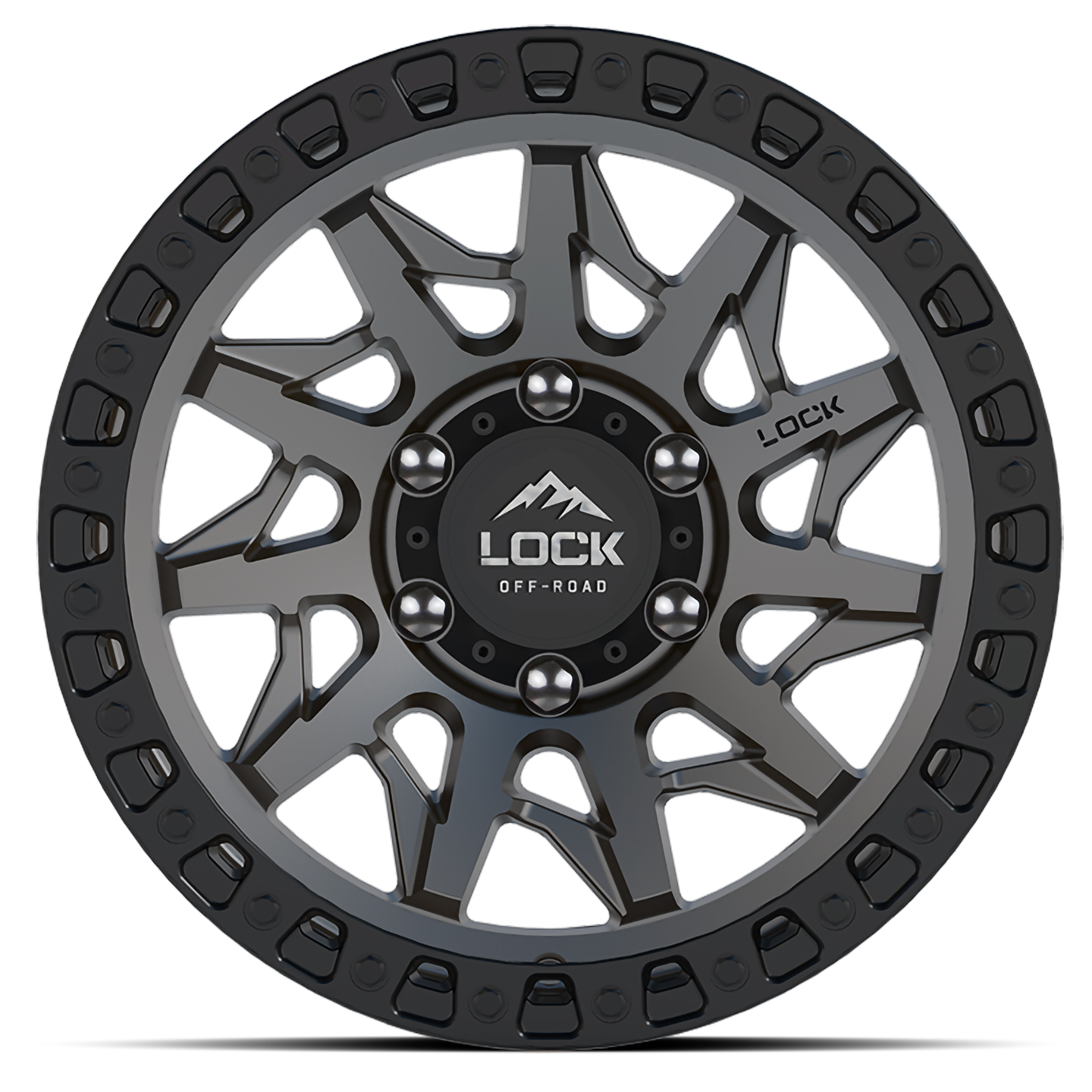

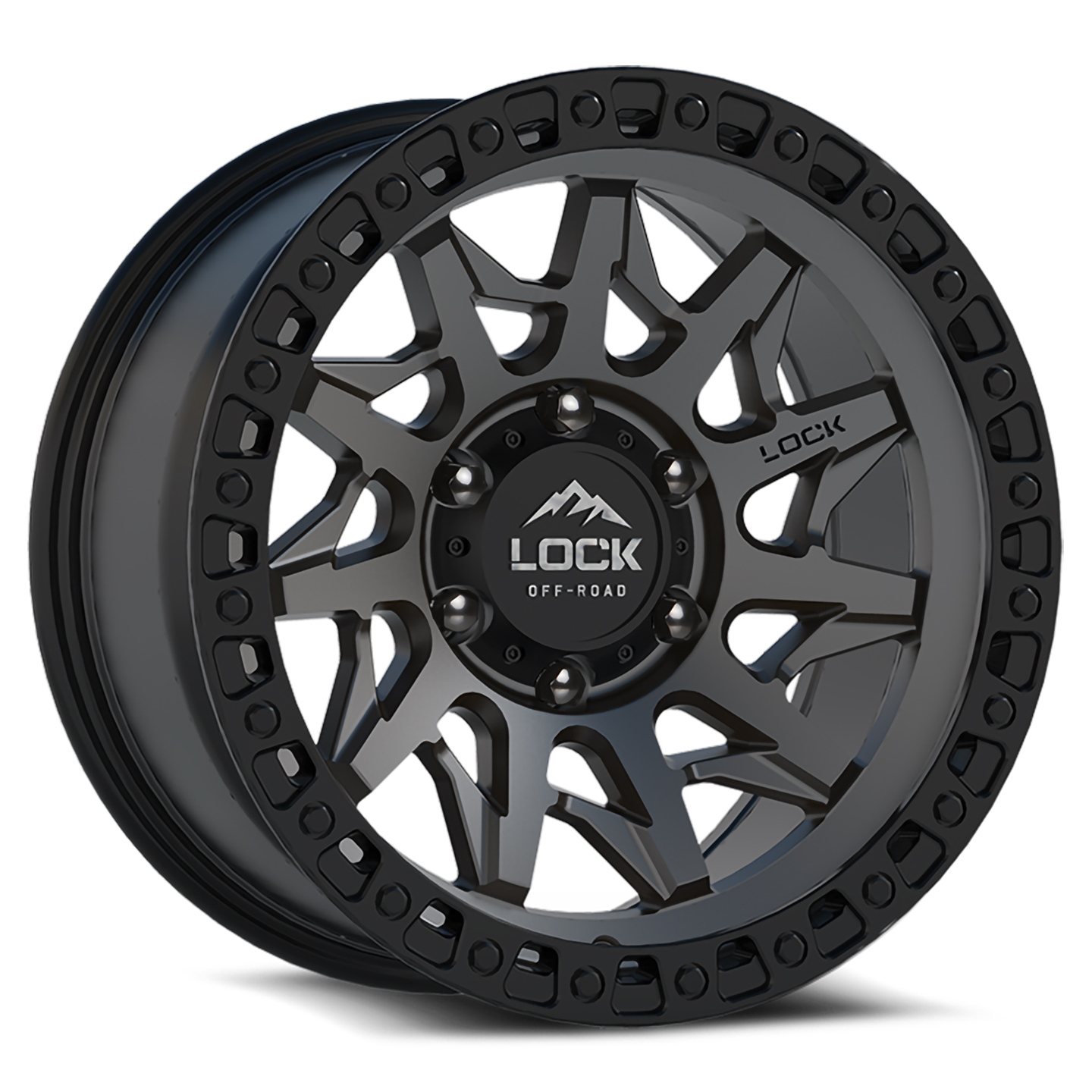

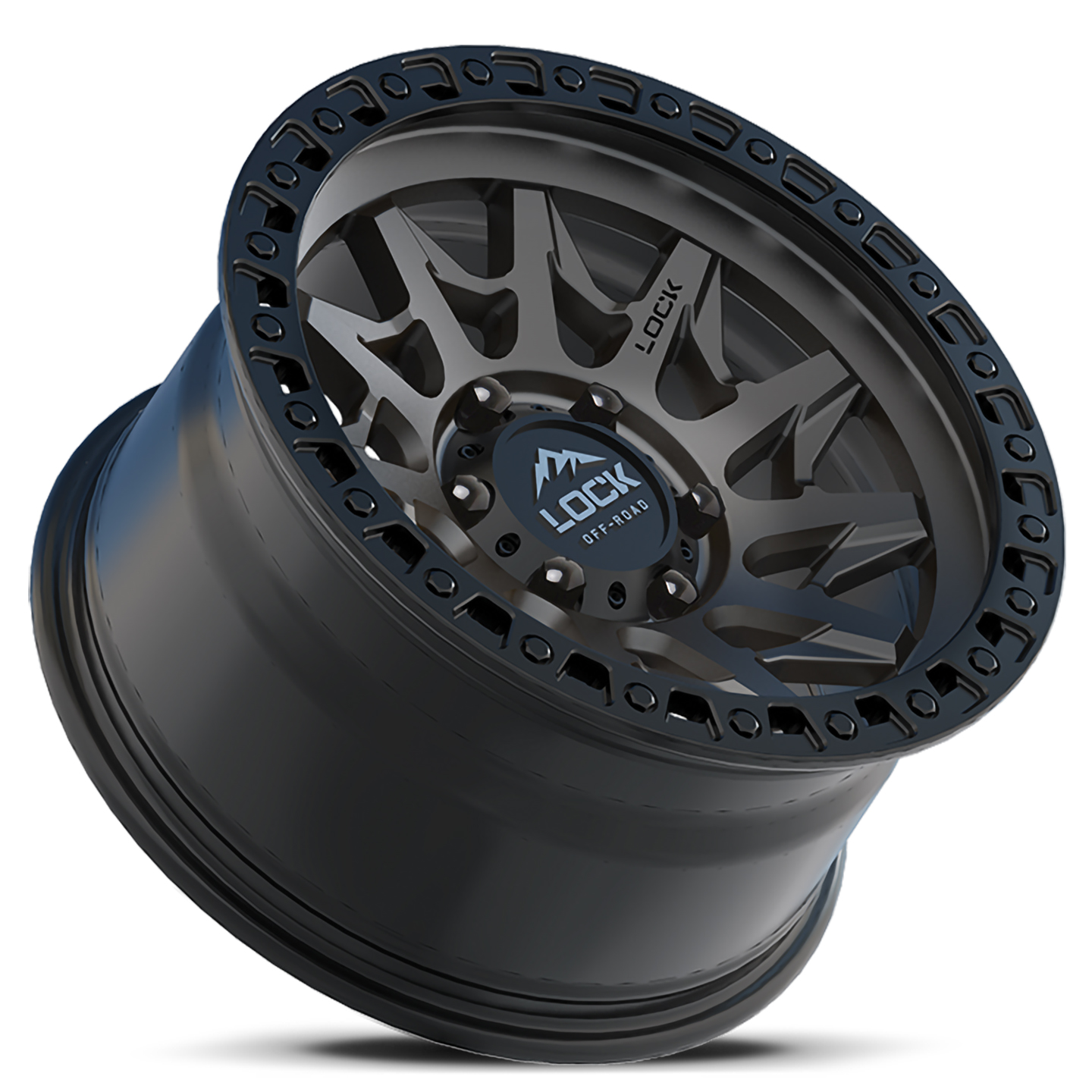

The Lock Lunatic Wheel is a directional 11-spoke pattern featuring an aggressive simulated bead-lock outer ring with large debris release slots on this semi-concave design. A custom bolt-on center cap offering maximum hub clearance paves way for additional axle nut fitment on your rig. Three special TACT-coated finishes of Matte Black, Matte Gunmetal, and Matte Bronze provide the ultimate visual appeal & durability to withstand the extreme elements. The Lock Lunatic is offered in multiple sizes that range from 17, 18 & 20 inch.
Available Finishes
Wheel Specs
| Part Numbers | Diameter | Width | Offset (MM) | Bolt Pattern | Centre Bore | Finish |
|---|---|---|---|---|---|---|
| LUNATIC-2157MB | 20 | 10 | -18 | 5x127 | 71.5 | Matte Black w/Matte Black Ring |
| LUNATIC-2163MB | 20 | 10 | -18 | 6x135 | 87.1 | Matte Black w/Matte Black Ring |
| LUNATIC-2169MB | 20 | 10 | -18 | 6x139.7 | 106.2 | Matte Black w/Matte Black Ring |
| LUNATIC-2187MB | 20 | 10 | -18 | 8x170 | 125.2 | Matte Black w/Matte Black Ring |
| LUNATIC-2957MB | 20 | 9 | 0 | 5x127 | 71.5 | Matte Black w/Matte Black Ring |
| LUNATIC-2963MB | 20 | 9 | 0 | 6x135 | 87.1 | Matte Black w/Matte Black Ring |
| LUNATIC-2969MB | 20 | 9 | 0 | 6x139.7 | 106.2 | Matte Black w/Matte Black Ring |
| LUNATIC-7957MB | 17 | 9 | -12 | 5x127 | 71.5 | Matte Black w/Matte Black Ring |
| LUNATIC-7957MB1 | 17 | 9 | 1 | 5x127 | 71.5 | Matte Black w/Matte Black Ring |
| LUNATIC-7963MB | 17 | 9 | 1 | 6x135 | 87.1 | Matte Black w/Matte Black Ring |
| LUNATIC-7969MB | 17 | 9 | -12 | 6x139.7 | 106.2 | Matte Black w/Matte Black Ring |
| LUNATIC-7969MB1 | 17 | 9 | 1 | 6x139.7 | 106.2 | Matte Black w/Matte Black Ring |
| LUNATIC-8957MB | 18 | 9 | -12 | 5x127 | 71.5 | Matte Black w/Matte Black Ring |
| LUNATIC-8957MB1 | 18 | 9 | 1 | 5x127 | 71.5 | Matte Black w/Matte Black Ring |
| LUNATIC-2157MRMBR | 20 | 10 | -18 | 5x127 | 71.5 | Matte Bronze w/Matte Black Ring |
| LUNATIC-2163MRMBR | 20 | 10 | -18 | 6x135 | 87.1 | Matte Bronze w/Matte Black Ring |
| LUNATIC-2169MRMBR | 20 | 10 | -18 | 6x139.7 | 106.2 | Matte Bronze w/Matte Black Ring |
| LUNATIC-2187MRMBR | 20 | 10 | -18 | 8x170 | 125.2 | Matte Bronze w/Matte Black Ring |
| LUNATIC-2957MRMBR | 20 | 9 | 0 | 5x127 | 71.5 | Matte Bronze w/Matte Black Ring |
| LUNATIC-2963MRMBR | 20 | 9 | 0 | 6x135 | 87.1 | Matte Bronze w/Matte Black Ring |
| LUNATIC-2969MRMBR | 20 | 9 | 0 | 6x139.7 | 106.2 | Matte Bronze w/Matte Black Ring |
| LUNATIC-7957MRMBR | 17 | 9 | -12 | 5x127 | 71.5 | Matte Bronze w/Matte Black Ring |
| LUNATIC-7957MRMBR1 | 17 | 9 | 1 | 5x127 | 71.5 | Matte Bronze w/Matte Black Ring |
| LUNATIC-7963MRMBR | 17 | 9 | 1 | 6x135 | 87.1 | Matte Bronze w/Matte Black Ring |
| LUNATIC-7969MRMBR | 17 | 9 | -12 | 6x139.7 | 106.2 | Matte Bronze w/Matte Black Ring |
| LUNATIC-7969MRMBR1 | 17 | 9 | 1 | 6x139.7 | 106.2 | Matte Bronze w/Matte Black Ring |
| LUNATIC-8957MRMBR | 18 | 9 | -12 | 5x127 | 71.5 | Matte Bronze w/Matte Black Ring |
| LUNATIC-8957MRMBR1 | 18 | 9 | 1 | 5x127 | 71.5 | Matte Bronze w/Matte Black Ring |
| LUNATIC-2157MGMBR | 20 | 10 | -18 | 5x127 | 71.5 | Matte Grey w/Matte Black Ring |
| LUNATIC-2163MGMBR | 20 | 10 | -18 | 6x135 | 87.1 | Matte Grey w/Matte Black Ring |
| LUNATIC-2169MGMBR | 20 | 10 | -18 | 6x139.7 | 106.2 | Matte Grey w/Matte Black Ring |
| LUNATIC-2187MGMBR | 20 | 10 | -18 | 8x170 | 125.2 | Matte Grey w/Matte Black Ring |
| LUNATIC-2957MGMBR | 20 | 9 | 0 | 5x127 | 71.5 | Matte Grey w/Matte Black Ring |
| LUNATIC-2963MGMBR | 20 | 9 | 0 | 6x135 | 87.1 | Matte Grey w/Matte Black Ring |
| LUNATIC-2969MGMBR | 20 | 9 | 0 | 6x139.7 | 106.2 | Matte Grey w/Matte Black Ring |
| LUNATIC-7957MGMBR | 17 | 9 | -12 | 5x127 | 71.5 | Matte Grey w/Matte Black Ring |
| LUNATIC-7957MGMBR1 | 17 | 9 | 1 | 5x127 | 71.5 | Matte Grey w/Matte Black Ring |
| LUNATIC-7963MGMBR | 17 | 9 | 1 | 6x135 | 87.1 | Matte Grey w/Matte Black Ring |
| LUNATIC-7969MGMBR | 17 | 9 | -12 | 6x139.7 | 106.2 | Matte Grey w/Matte Black Ring |
| LUNATIC-7969MGMBR1 | 17 | 9 | 1 | 6x139.7 | 106.2 | Matte Grey w/Matte Black Ring |
| LUNATIC-8957MGMBR | 18 | 9 | -12 | 5x127 | 71.5 | Matte Grey w/Matte Black Ring |
| LUNATIC-8957MGMBR1 | 18 | 9 | 1 | 5x127 | 71.5 | Matte Grey w/Matte Black Ring |
