MATRIX (BR)

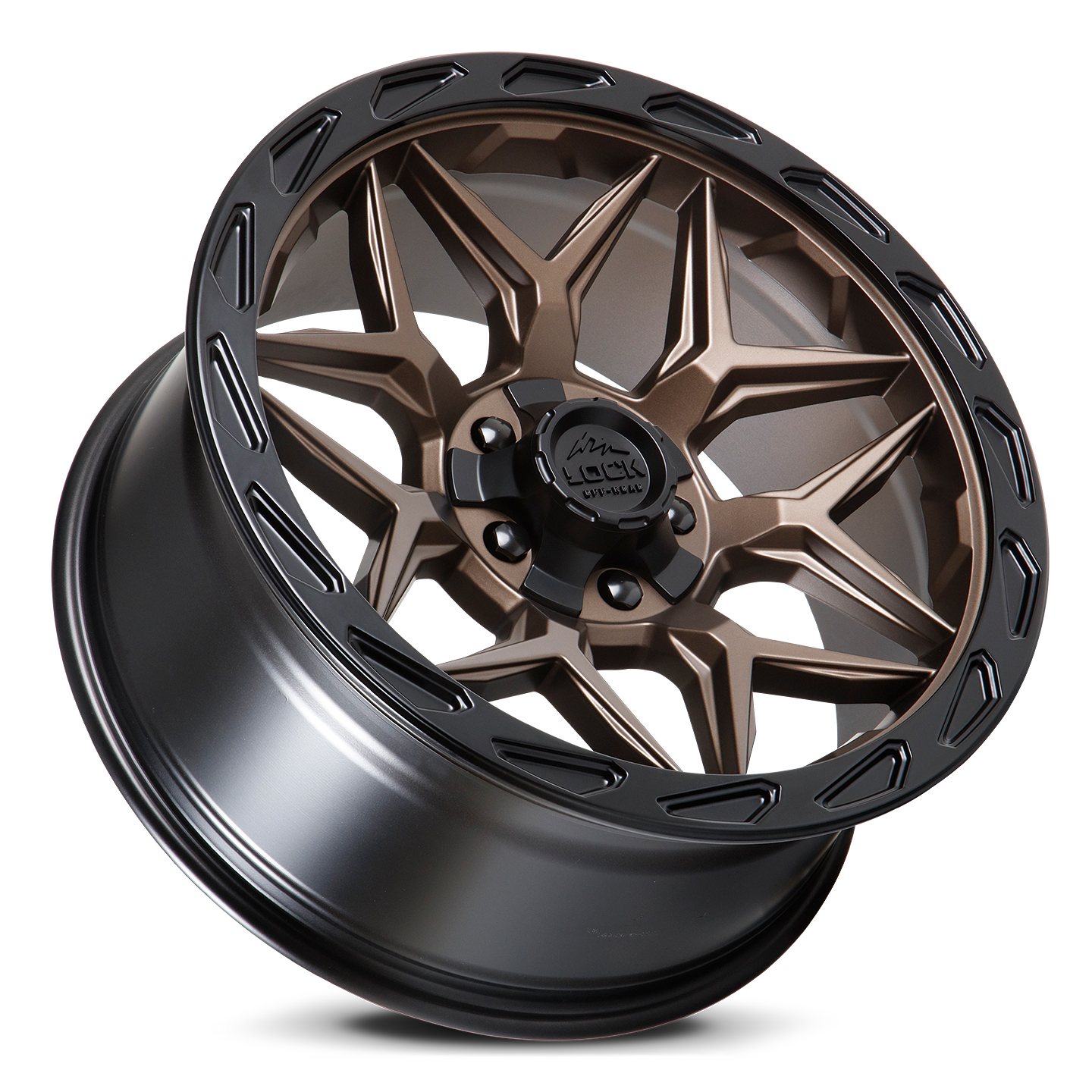

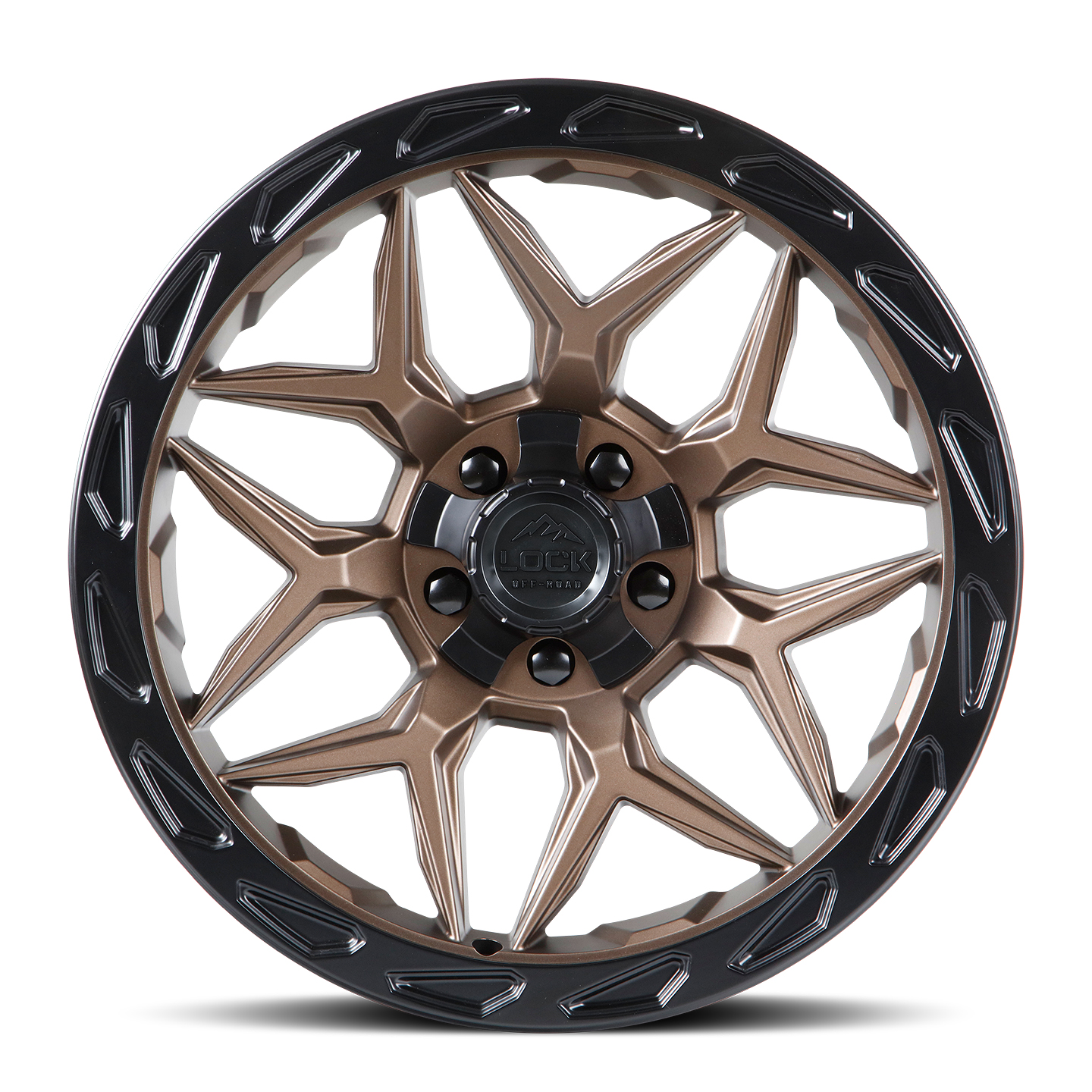

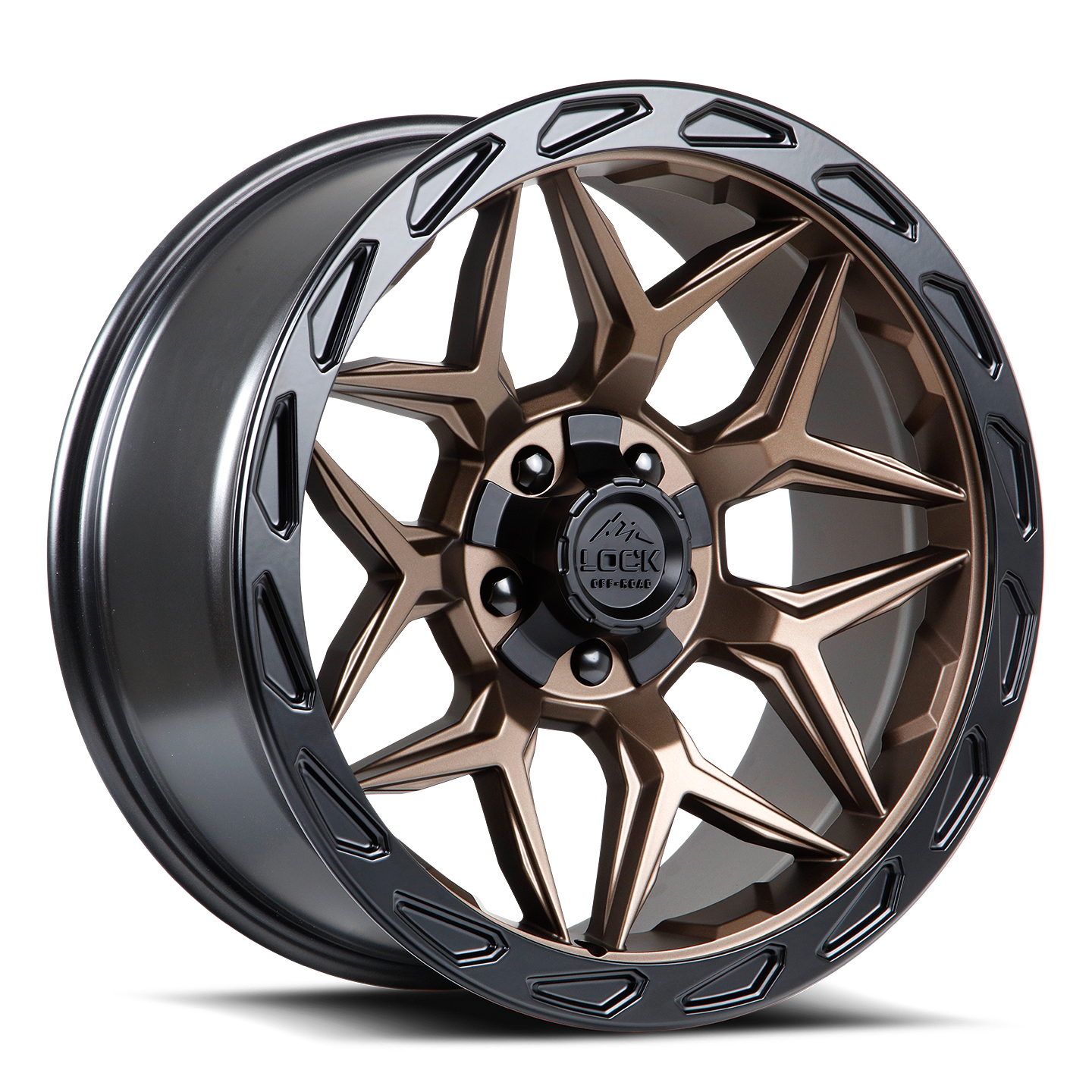

Spearhead widened mesh pattern designs; the Lock Matrix is an icon of its own. With design concepts built around stylish and bold first look impressions, this unique and modern design casts a new trend in offroad wheels. The spokes spread even distribution of load on the Y-axis points for a more durable and lightweight combination. The future of all-terrain, rock climbing and off-roading is here with the Lock Matrix! Three special TACT-coated finishes of Matte Black, Matte Gunmetal, and Matte Bronze provide the ultimate visual appeal & durability to withstand the extreme elements. Available sizes 17, 20 & 22 inch options.
Available Finishes
Wheel Specs
| Part Numbers | Diameter | Width | Offset (MM) | Bolt Pattern | Centre Bore | Finish |
|---|---|---|---|---|---|---|
| MATRIX-2121MB | 20 | 10 | -18 | 5x127/5x139.7 | 87.1 | Matte Black w/Matte Black Ring |
| MATRIX-2136MB | 20 | 10 | -18 | 6x135/6x139.7 | 106.2 | Matte Black w/Matte Black Ring |
| MATRIX-221021MB | 22 | 10 | -18 | 5x127/5x139.7 | 87.1 | Matte Black w/Matte Black Ring |
| MATRIX-221036MB | 22 | 10 | -18 | 6x135/6x139.7 | 106.2 | Matte Black w/Matte Black Ring |
| MATRIX-2921MB | 20 | 9 | 0 | 5x127/5x139.7 | 87.1 | Matte Black w/Matte Black Ring |
| MATRIX-2936MB | 20 | 9 | 0 | 6x135/6x139.7 | 106.2 | Matte Black w/Matte Black Ring |
| MATRIX-7921MB | 17 | 9 | 0 | 5x127/5x139.7 | 87.1 | Matte Black w/Matte Black Ring |
| MATRIX-7921MB12N | 17 | 9 | -12 | 5x127/5x139.7 | 87.1 | Matte Black w/Matte Black Ring |
| MATRIX-7936MB | 17 | 9 | 0 | 6x135/6x139.7 | 106.2 | Matte Black w/Matte Black Ring |
| MATRIX-7936MB12N | 17 | 9 | -12 | 6x135/6x139.7 | 106.2 | Matte Black w/Matte Black Ring |
| MATRIX-2121MRMBR | 20 | 10 | -18 | 5x127/5x139.7 | 87.1 | Matte Bronze w/Matte Black Ring |
| MATRIX-2136MRMBR | 20 | 10 | -18 | 6x135/6x139.7 | 106.2 | Matte Bronze w/Matte Black Ring |
| MATRIX-221021MRMBR | 22 | 10 | -18 | 5x127/5x139.7 | 87.1 | Matte Bronze w/Matte Black Ring |
| MATRIX-221036MRMBR | 22 | 10 | -18 | 6x135/6x139.7 | 106.2 | Matte Bronze w/Matte Black Ring |
| MATRIX-2921MRMBR | 20 | 9 | 0 | 5x127/5x139.7 | 87.1 | Matte Bronze w/Matte Black Ring |
| MATRIX-2936MRMBR | 20 | 9 | 0 | 6x135/6x139.7 | 106.2 | Matte Bronze w/Matte Black Ring |
| MATRIX-7921MRMBR | 17 | 9 | 0 | 5x127/5x139.7 | 87.1 | Matte Bronze w/Matte Black Ring |
| MATRIX-7921MRMBR12N | 17 | 9 | -12 | 5x127/5x139.7 | 87.1 | Matte Bronze w/Matte Black Ring |
| MATRIX-7936MRMBR | 17 | 9 | 0 | 6x135/6x139.7 | 106.2 | Matte Bronze w/Matte Black Ring |
| MATRIX-7936MRMBR12N | 17 | 9 | -12 | 6x135/6x139.7 | 106.2 | Matte Bronze w/Matte Black Ring |
| MATRIX-2121MGMBR | 20 | 10 | -18 | 5x127/5x139.7 | 87.1 | Matte Grey w/Matte Black Ring |
| MATRIX-2136MGMBR | 20 | 10 | -18 | 6x135/6x139.7 | 106.2 | Matte Grey w/Matte Black Ring |
| MATRIX-221021MGMBR | 22 | 10 | -18 | 5x127/5x139.7 | 87.1 | Matte Grey w/Matte Black Ring |
| MATRIX-221036MGMBR | 22 | 10 | -18 | 6x135/6x139.7 | 106.2 | Matte Grey w/Matte Black Ring |
| MATRIX-2921MGMBR | 20 | 9 | 0 | 5x127/5x139.7 | 87.1 | Matte Grey w/Matte Black Ring |
| MATRIX-2936MGMBR | 20 | 9 | 0 | 6x135/6x139.7 | 106.2 | Matte Grey w/Matte Black Ring |
| MATRIX-7921MGMBR | 17 | 9 | 0 | 5x127/5x139.7 | 87.1 | Matte Grey w/Matte Black Ring |
| MATRIX-7921MGMBR12N | 17 | 9 | -12 | 5x127/5x139.7 | 87.1 | Matte Grey w/Matte Black Ring |
| MATRIX-7936MGMBR | 17 | 9 | 0 | 6x135/6x139.7 | 106.2 | Matte Grey w/Matte Black Ring |
| MATRIX-7936MGMBR12N | 17 | 9 | -12 | 6x135/6x139.7 | 106.2 | Matte Grey w/Matte Black Ring |
