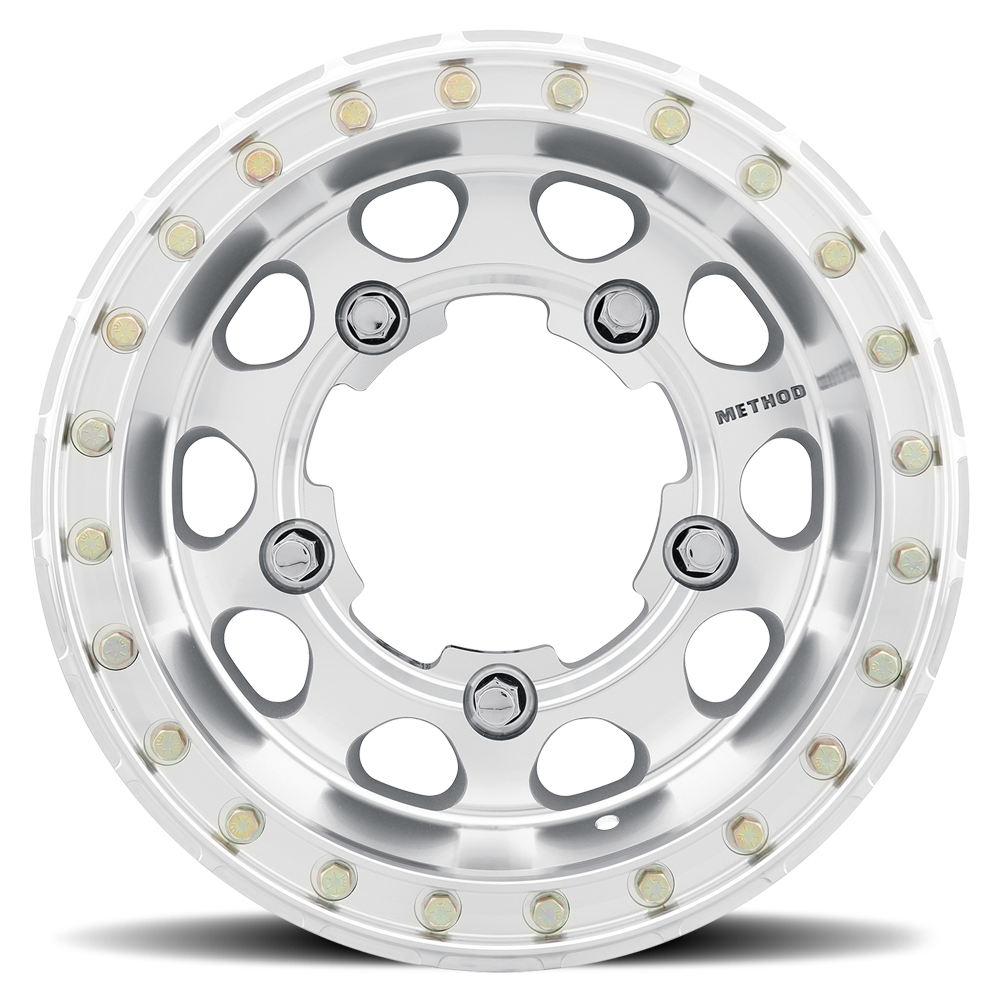

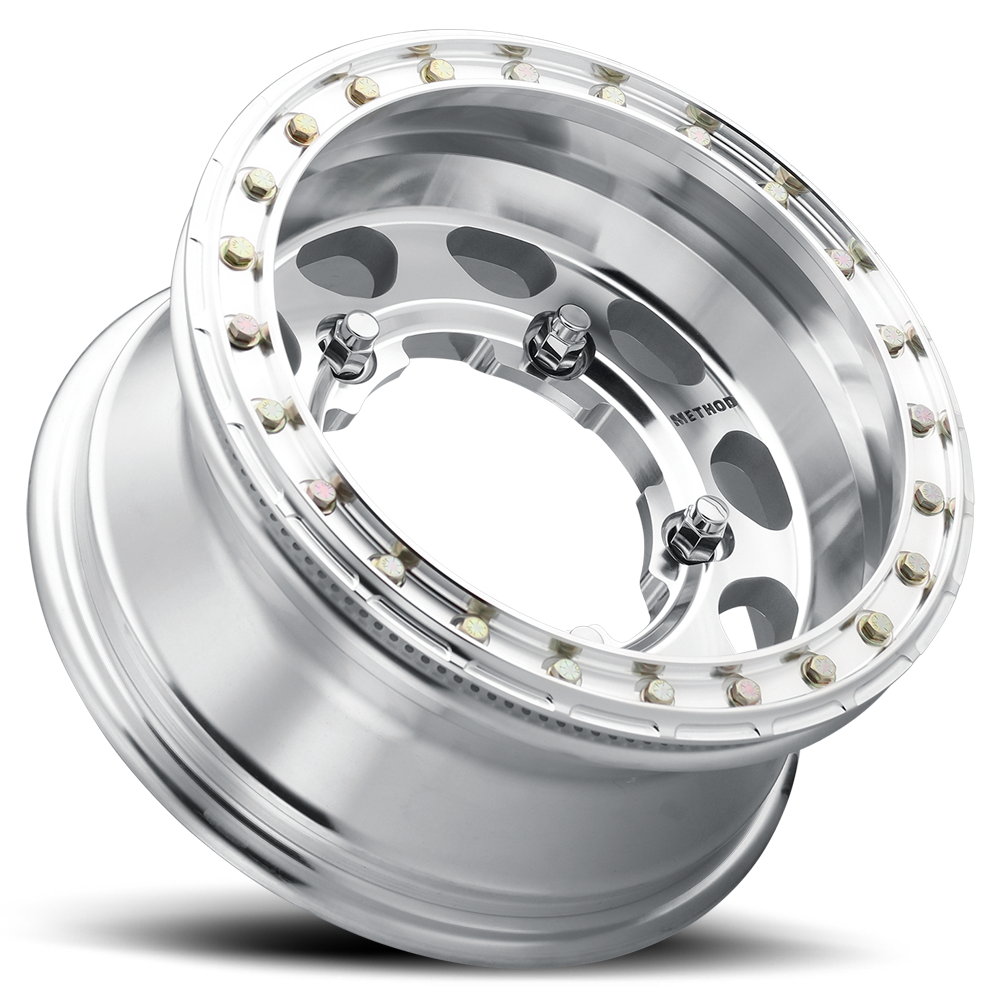

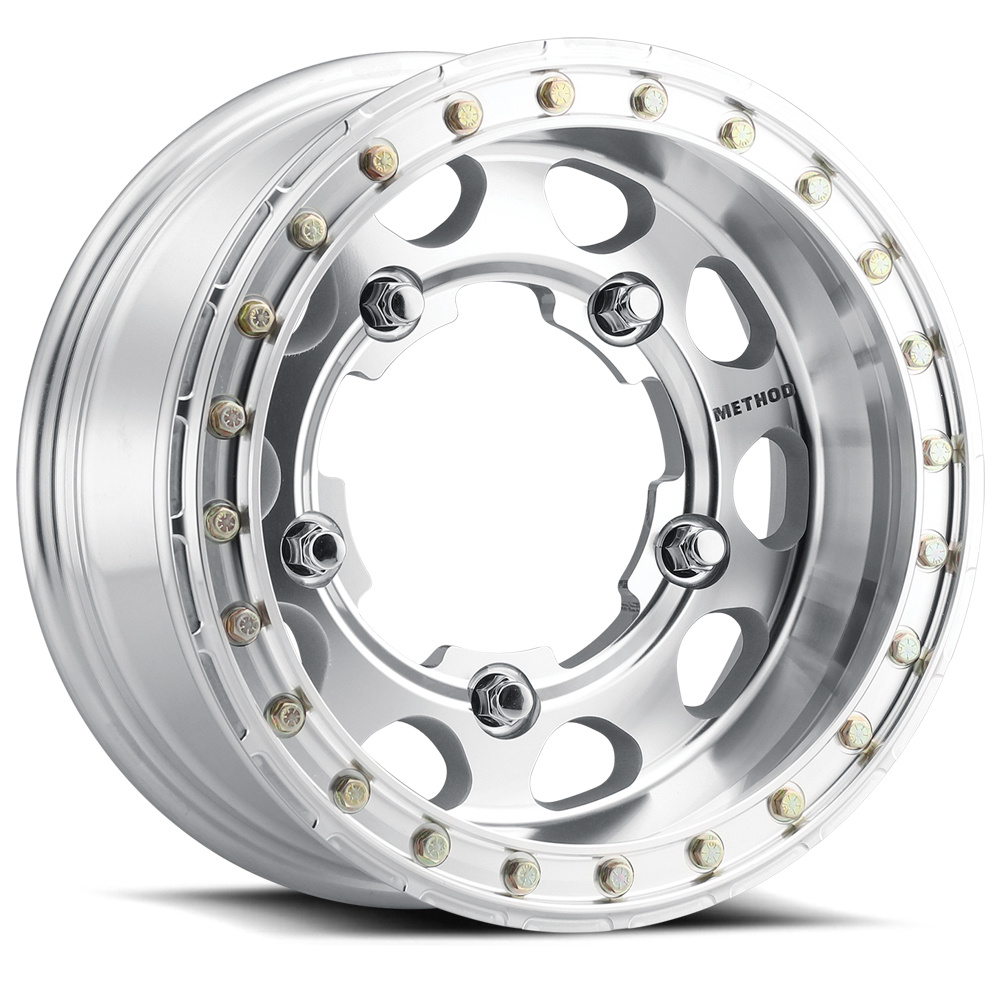

MR103 Buggy Beadlock (MR)
Racing down in Baja or through the Nevada desert in a Class 1 or Pre-Runner is no easy task. Rest assured that the Method Race Wheels 103 Buggy Beadlock wheels are built strong, making them the ultimate race wheel for your buggy.
DETAILS
- Solid A356 aluminum construction with proprietary heat treatment
- Shorter spoke with a wide-five bolt pattern
- Material reduction in hub to reduce overall weight
- Forged 6061 aluminum V.4 beadlock ring
- Grade 8 zinc-plated beadlock hardware kit included
- Redundant sets of threaded beadlock hardware holes machined into wheel
- Strong 1900 to 3200 lbs. load ratings
Wheel Specs
| Part Number | Diameter | Width | Offset (mm) | Bolt Pattern | Centre Bore | Finish |
|---|---|---|---|---|---|---|
| MR10354519325B | 15 | 4.5 | -25 | 5x205 | 160 | Machined - Raw |
| MR10357019325B | 15 | 7 | -25 | 5x205 | 160 | Machined - Raw |
| MR10357019345B | 15 | 7 | -45 | 5x205 | 160 | Machined - Raw |
| MR10376519319B | 17 | 6.5 | -19 | 5x205 | 160 | Machined - Raw |
| MR10376519338B | 17 | 6.5 | -38 | 5x205 | 160 | Machined - Raw |
| MR10378019300B | 17 | 8 | 0 | 5x205 | 160 | Machined - Raw |
