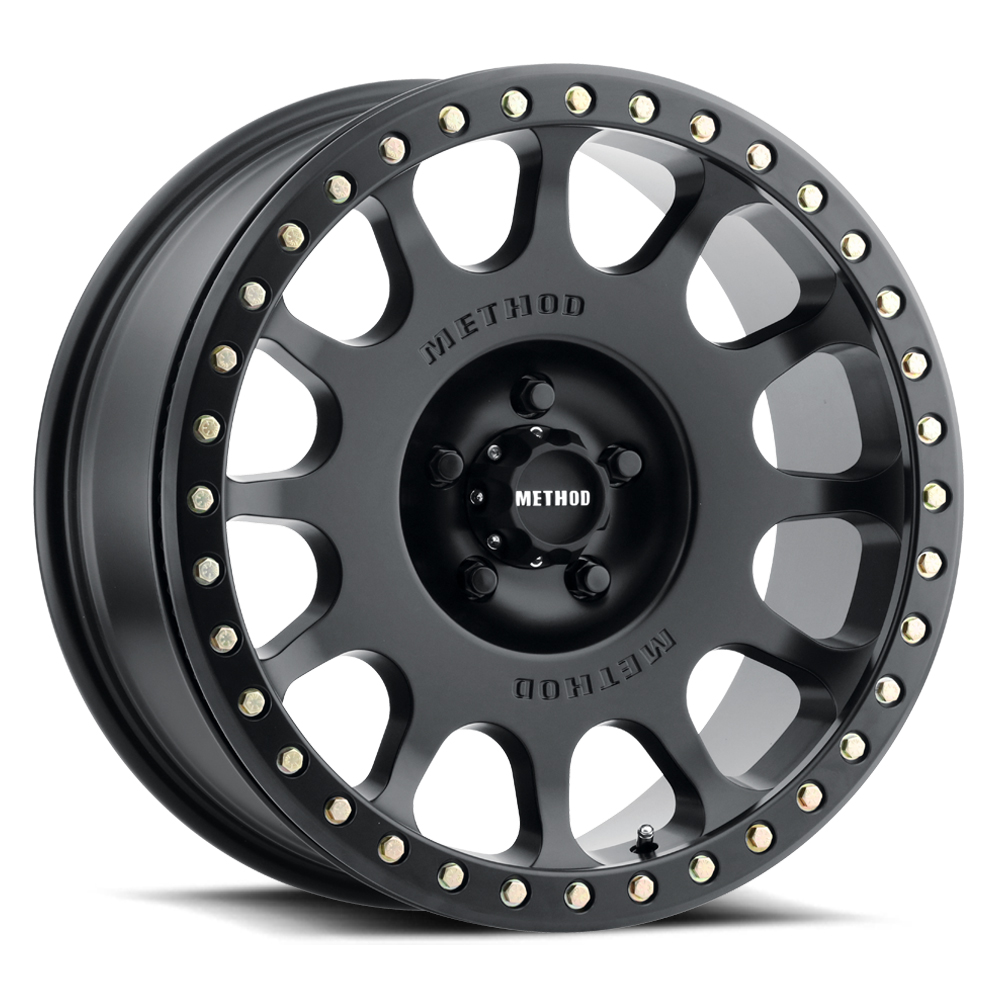

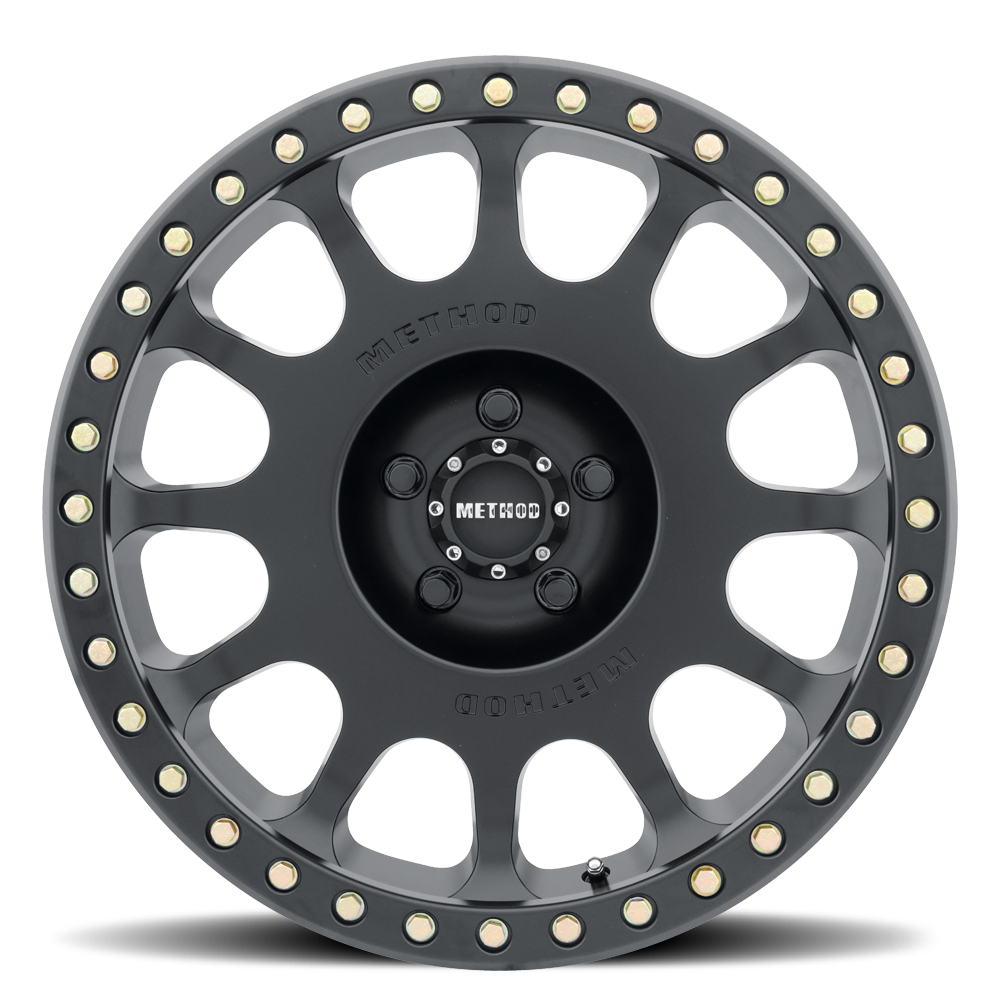

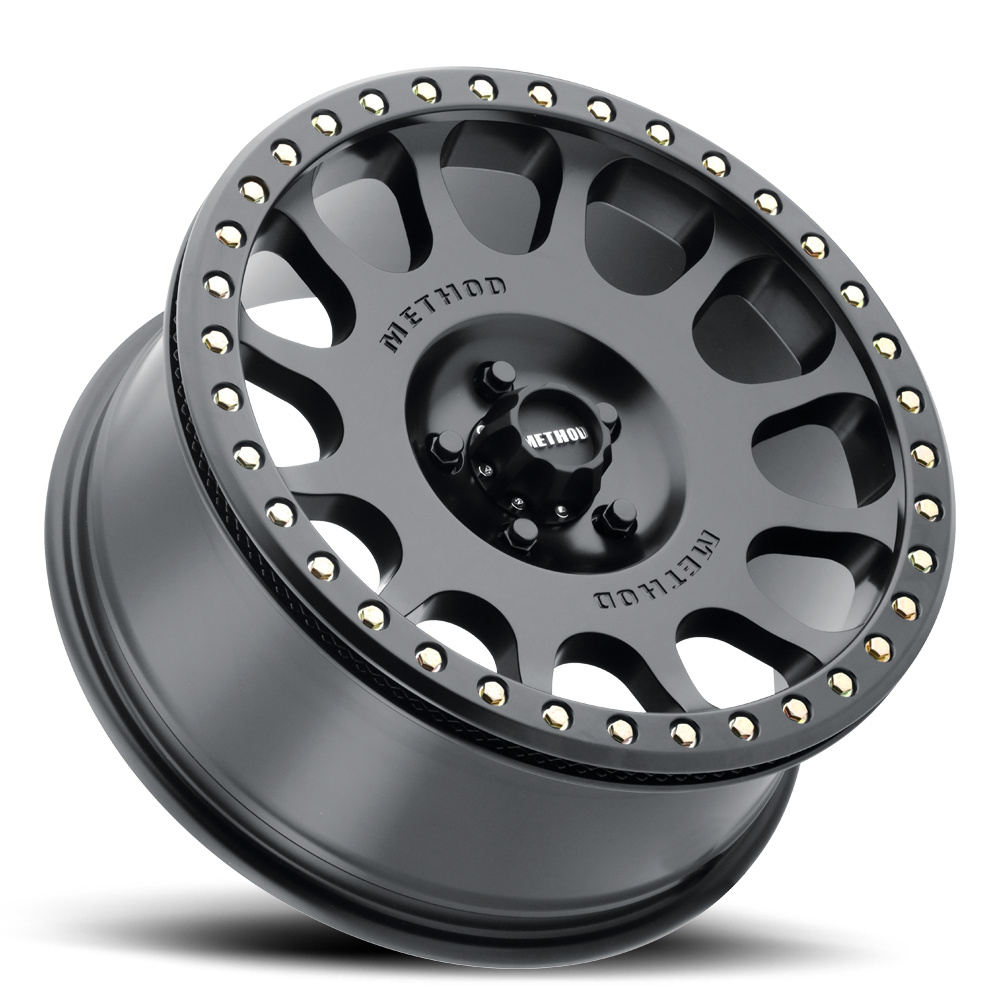

MR105 Beadlock (MB)

When the pavement ends that’s where the Method Race Wheels 105 beadlock wheel truly shines. Developed for the serious off-road enthusiast, you’ll find these wheels on  rigs from overland to extreme rock crawlers and everything in between.


  • Solid A356 aluminum with T6 heat treatment construction
  • Iconic 12 window design with debossed METHOD logos
  • Forged 6061-T6 aluminum V.1 beadlock ring
  • Reinforced inner lip provides extreme strength and durability
  • Grade 8 zinc-plated beadlock hardware kit included
  • Redundant sets of threaded beadlock hardware holes machined into wheel
  • Bolt-on center cap with embossed METHOD logo on 5×5 and 6×135 applications
  • Push through center cap with embossed METHOD logo for all other applications
  • Hub centric fitments for common applications
  • Super strong 3600 lbs. load rating

Available Finishes

Matte Black
Machined - Matte Black Ring

Wheel Specs

Part NumberDiameterWidthOffset (mm)Bolt PatternCentre BoreFinish
MR10578516500B178.506x13587Matte Black
MR10578555500B178.505x5.5108Matte Black
MR10578560500B178.506x5.5108Matte Black
MR10578580500B178.508x6.5130.81Matte Black
MR10579012538B179-385x4.583Matte Black
MR10579050538B179-385x571.5Matte Black
MR10579060538B179-386x5.5108Matte Black
MR10579080538B179-388x6.5130.81Matte Black
MR10579050338B179-385x571.5Machined - Matte Black Ring
MR10579060338B179-386x5.5108Machined - Matte Black Ring
