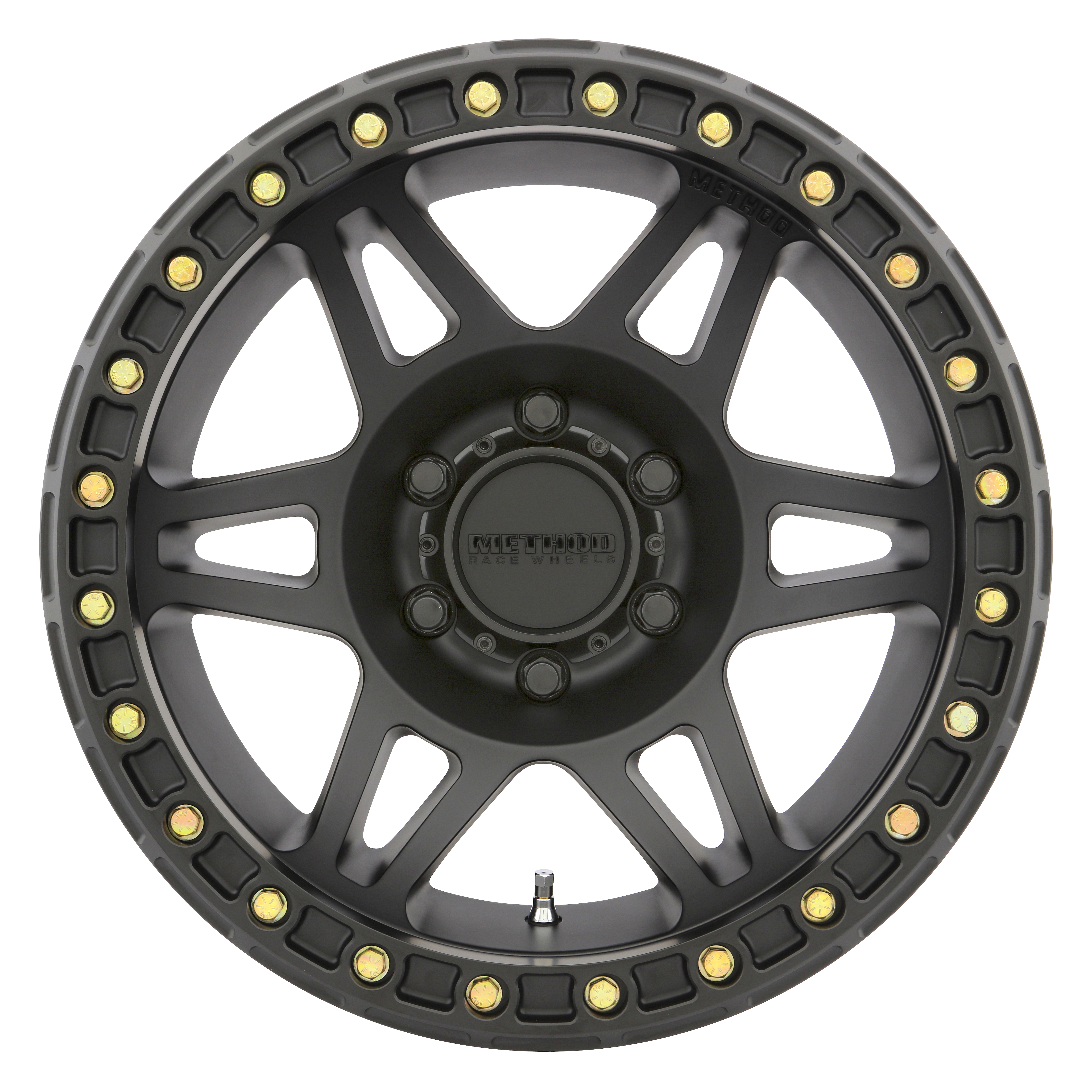

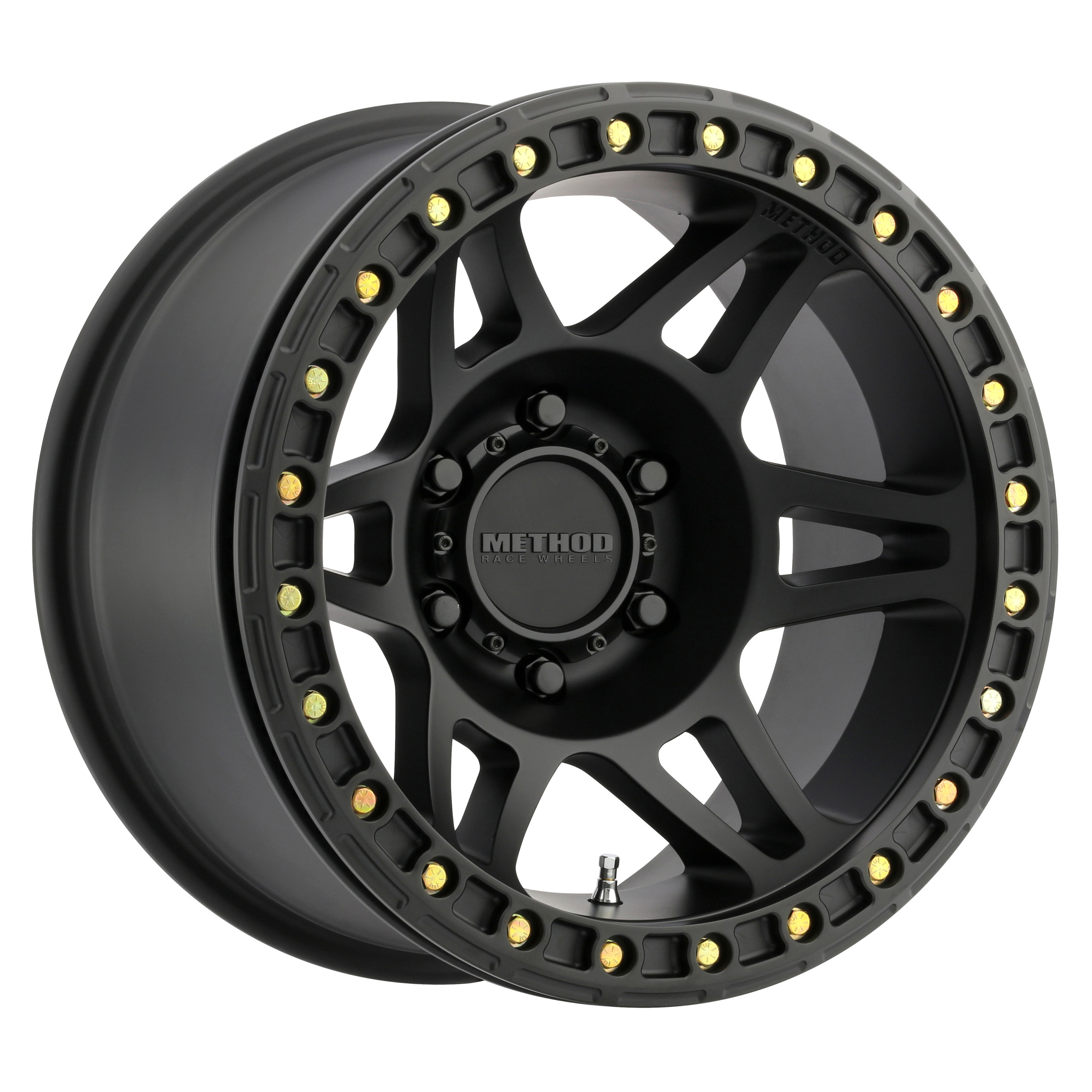

MR106 Beadlock (MB)
The Method Race Wheels 106 beadlock wheels are the perfect addition for those rock crawling, desert pre-running or anywhere your off-road vehicle can possibly go.
DETAILS
- Solid A356 aluminum with T6 heat treatment construction
- Tough 6 windowed point design with debossed METHOD logos
- Forged 6061 aluminum V.3 beadlock ring is 53% thicker and reduces deflection
- Reinforced inner lip provides extreme strength and durability
- Extra wide bead seat is 17% bigger to accommodate largest tires
- Grade 8 zinc-plated beadlock hardware kit included
- Redundant sets of threaded beadlock hardware holes machined into wheel
- Recessed hardware has 360-degree protection to prevent bolt head shearing
- Bolt-on center cap with embossed METHOD logo
- Hub centric fitments for common applications
- Super strong 3600 lbs. load rating
Wheel Specs
Part Number | Diameter | Width | Offset (mm) | Bolt Pattern | Centre Bore | Finish |
---|---|---|---|---|---|---|
MR10679050944B | 17 | 9 | -44 | 5x5 | 71.5 | Method Bronze |
MR10679060944B | 17 | 9 | -44 | 6x5.5 | 108 | Method Bronze |
MR10679080944B | 17 | 9 | -44 | 8x6.5 | 130.81 | Method Bronze |
MR10679050544B | 17 | 9 | -44 | 5x5 | 71.5 | Matte Black |
MR10679060544B | 17 | 9 | -44 | 6x5.5 | 108 | Matte Black |
MR10679080544B | 17 | 9 | -44 | 8x6.5 | 130.81 | Matte Black |
MR10679050344B | 17 | 9 | -44 | 5x5 | 71.5 | Machined - Clear Coast |
MR10679060344B | 17 | 9 | -44 | 6x5.5 | 108 | Machined - Clear Coast |
MR10679080344B | 17 | 9 | -44 | 8x6.5 | 130.81 | Machined - Clear Coast |
