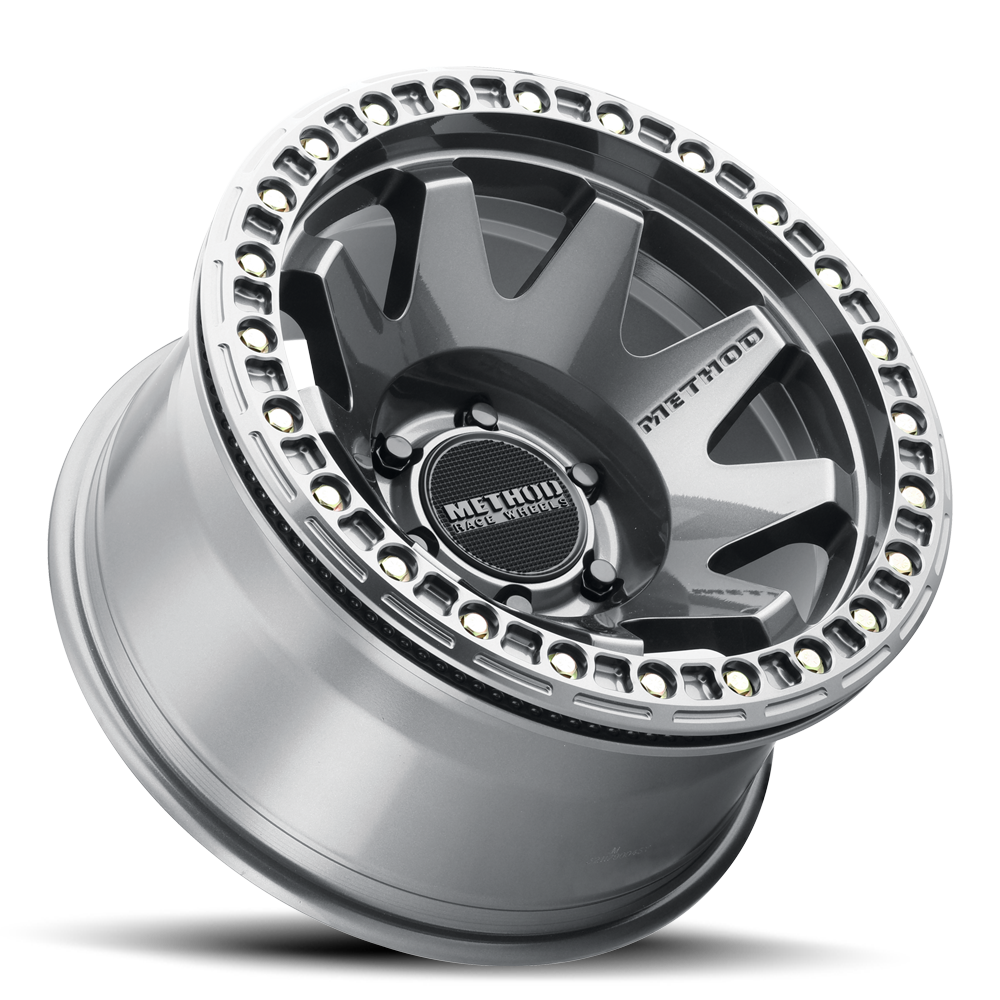

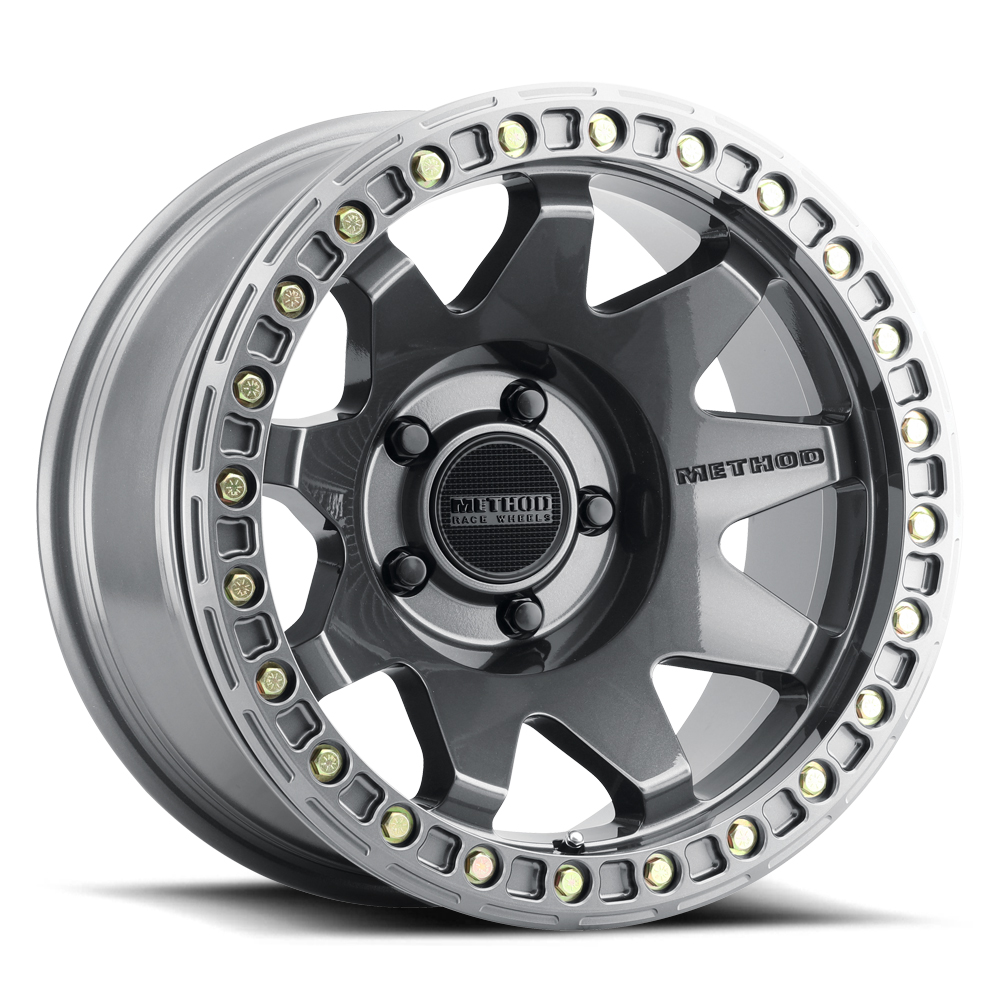

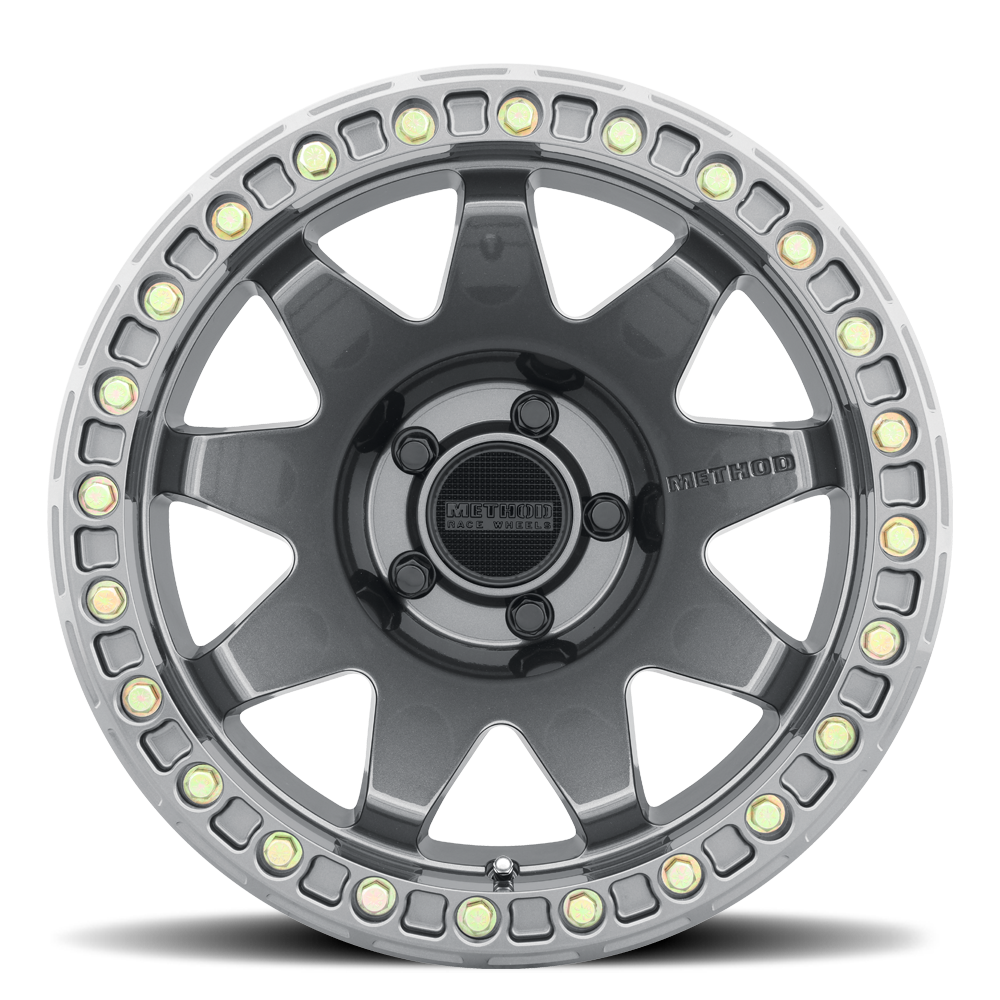

MR108 (GT)
The 108 Beadlock Wheel boasts a rugged 9 spoke design with a debossed Method logo on the spoke. It’s our first wheel to feature both Beadlock and our patented Bead Grip® technology. The added bead seat on the inner lip creates unmatched tire security.
With extra material added to high-stress areas and featuring 3/8″ beadlock hardware, the wheel is able to achieve a 4,000 lbs. load rating.
DETAILS
- Solid A356 aluminum with T6 heat treatment construction
- Tough 9 spoke design with debossed METHOD logo on spoke
- Forged 6061 aluminum V5 beadlock ring
- Patented Bead Grip® bead seats on inner lip
- 3/8” Grade 8 zinc-plated beadlock hardware kit included
- Redundant sets of threaded beadlock hardware holes machined into wheel
- Snap-on center cap with embossed METHOD logo
- Push through cap with embossed METHOD logo for 8 lug applications
- Hub centric fitments for common applications
- Super strong 4000 lbs. load ratings
- 4,000lb load rating tested for use on tires up to 40″ in size
- Beefy design throughout for extra strength. Increased thickness on barrel and inner bead flange. Extra material added in high-stress areas to achieve 4,000lb load rating
Wheel Specs
Part Number | Diameter | Width | Offset (mm) | Bolt Pattern | Centre Bore | Finish |
---|---|---|---|---|---|---|
MR10879050844B | 17 | 9 | -44 | 5x5 | 71.5 | Gloss Titanium |
MR10879060844B | 17 | 9 | -44 | 6x5.5 | 106.25 | Gloss Titanium |
MR10879080844B | 17 | 9 | -44 | 8x6.5 | 130.81 | Gloss Titanium |
MR10879050544B | 17 | 9 | -44 | 5x5 | 71.5 | Matte Black |
MR10879060544B | 17 | 9 | -44 | 6x5.5 | 106.25 | Matte Black |
MR10879080544B | 17 | 9 | -44 | 8x6.5 | 130.81 | Matte Black |
