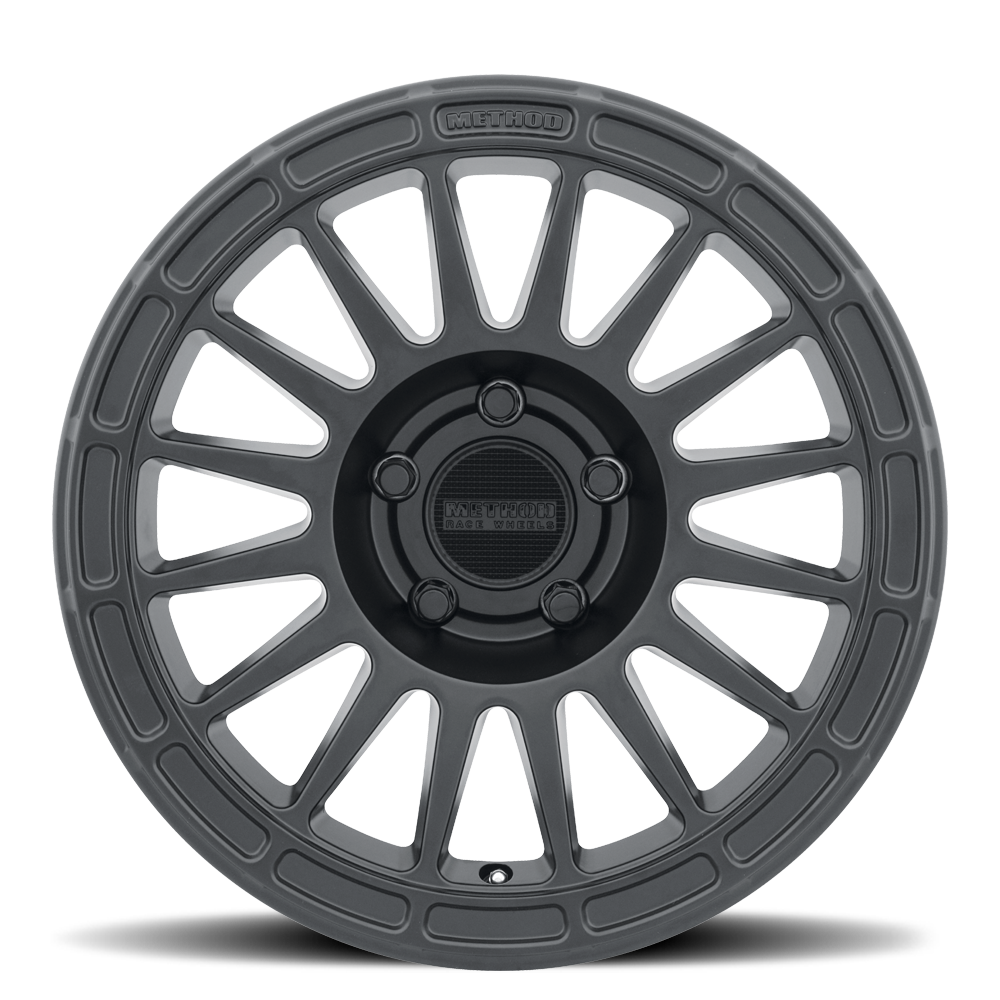

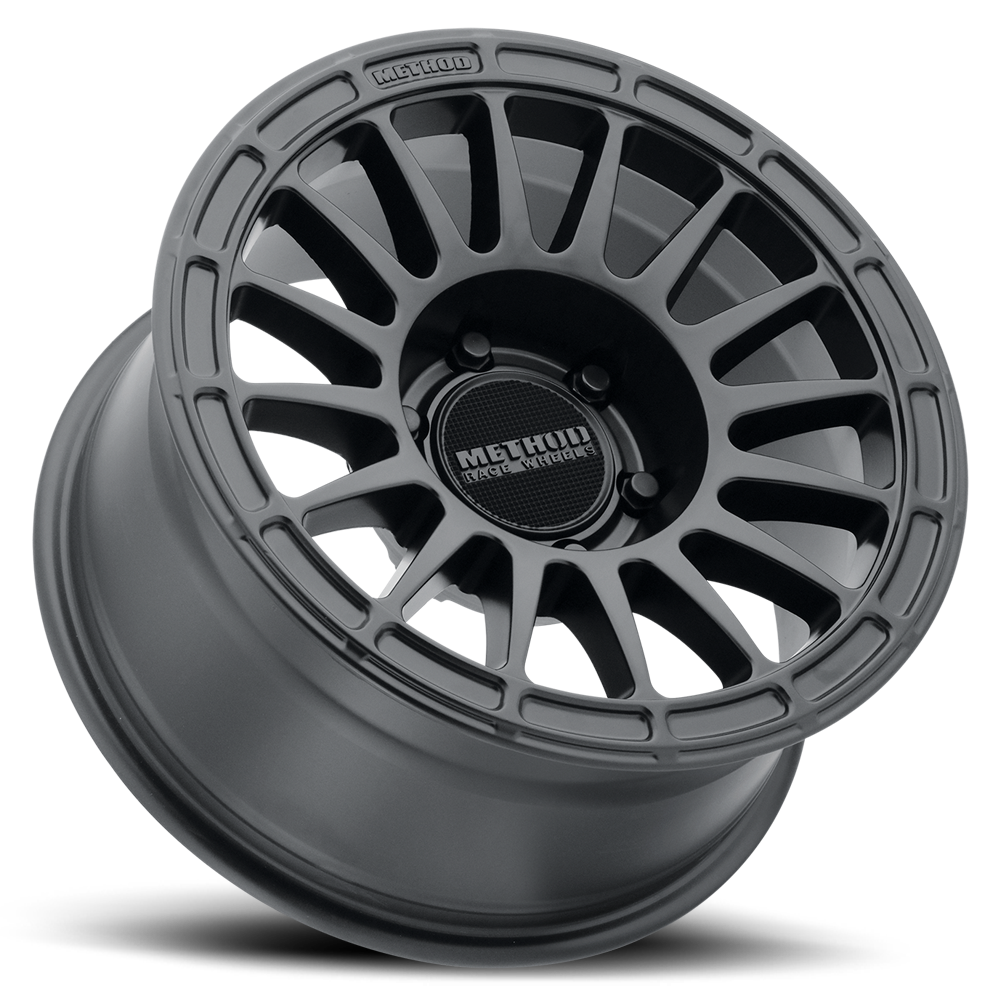

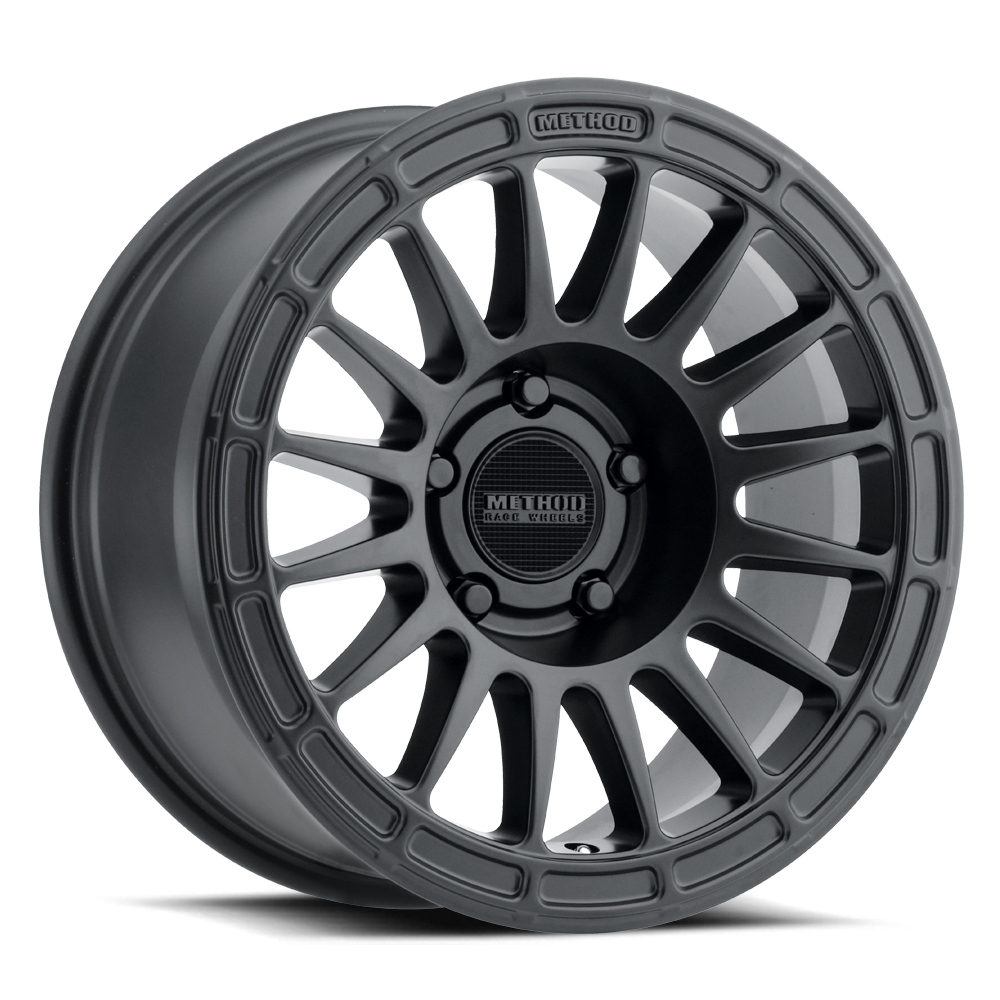

MR314 (MB)
The 314 Standard Wheel features a burly and utilitarian styling, inspired by famous Dakar Rally® wheel design. Around the lip you’ll find weight saving pockets machined out with ‘Method’ embossed in one of the pockets. The spoke faces are slightly arched with a deeply recessed bolt circle for added depth. The 314 boasts a super strong 2,650- 3,640 lbs. load rating.
DETAILS
- Solid A356 aluminum with T6 heat treatment construction
- Rally Raid Inspired 16 spoke design
- Machined pockets in outer lip with embossed METHOD logo
- Snap-in center cap with embossed METHOD logo
- Additional snap-in center caps available
- Push through center cap with embossed METHOD logo for 8 lug applications
- Hub centric fitments for common applications
- Industry’s best lifetime structural warranty
- Super strong 2650 lbs. and 3640 lbs. load rating
Available Finishes
Wheel Specs
| Part Number | Diameter | Width | Offset (mm) | Bolt Pattern | Centre Bore | Finish |
|---|---|---|---|---|---|---|
| MR31457051815 | 15 | 7 | 15 | 5x100 | 56.1 | Gloss Titanium |
| MR31477512830 | 17 | 7.5 | 30 | 5x4.5 | 73 | Gloss Titanium |
| MR31477554830 | 17 | 7.5 | 30 | 5x110 | 65.1 | Gloss Titanium |
| MR31477552825 | 17 | 7.5 | 25 | 5x120 | 70.1 | Gloss Titanium |
| MR31477558825 | 17 | 7.5 | 25 | 5x150 | 110.5 | Gloss Titanium |
| MR31477549830 | 17 | 7.5 | 30 | 5x108 | 63.4 | Gloss Titanium |
| MR31477564824 | 17 | 7.5 | 24 | 6x4.5 | 66.1 | Gloss Titanium |
| MR31477560825 | 17 | 7.5 | 25 | 6x5.5 | 106.25 | Gloss Titanium |
| MR31478550800 | 17 | 8.5 | 0 | 5x5 | 71.5 | Gloss Titanium |
| MR31478558800 | 17 | 8.5 | 0 | 5x150 | 110.5 | Gloss Titanium |
| MR31478560800 | 17 | 8.5 | 0 | 6x5.5 | 106.25 | Gloss Titanium |
| MR31478580800 | 17 | 8.5 | 0 | 8x6.5 | 130.81 | Gloss Titanium |
| MR31489060818 | 18 | 9 | 18 | 6x5.5 | 106.25 | Gloss Titanium |
| MR31489080818 | 18 | 9 | 18 | 8x6.5 | 130.81 | Gloss Titanium |
| MR31457051515 | 15 | 7 | 15 | 5x100 | 56.1 | Matte Black |
| MR31477512530 | 17 | 7.5 | 30 | 5x4.5 | 73 | Matte Black |
| MR31477554530 | 17 | 7.5 | 30 | 5x110 | 65.1 | Matte Black |
| MR31477552525 | 17 | 7.5 | 25 | 5x120 | 70.1 | Matte Black |
| MR31477558525 | 17 | 7.5 | 25 | 5x150 | 110.5 | Matte Black |
| MR31477549530 | 17 | 7.5 | 30 | 5x108 | 63.4 | Matte Black |
| MR31477564524 | 17 | 7.5 | 24 | 6x4.5 | 66.1 | Matte Black |
| MR31477560525 | 17 | 7.5 | 25 | 6x5.5 | 106.25 | Matte Black |
| MR31478550500 | 17 | 8.5 | 0 | 5x5 | 71.5 | Matte Black |
| MR31478558500 | 17 | 8.5 | 0 | 5x150 | 110.5 | Matte Black |
| MR31478516500 | 17 | 8.5 | 0 | 6x135 | 87 | Matte Black |
| MR31478560500 | 17 | 8.5 | 0 | 6x5.5 | 106.25 | Matte Black |
| MR31478580500 | 17 | 8.5 | 0 | 8x6.5 | 130.81 | Matte Black |
| MR31489058518 | 18 | 9 | 18 | 5x150 | 110.5 | Matte Black |
| MR31489060518 | 18 | 9 | 18 | 6x5.5 | 106.25 | Matte Black |
| MR31489080518 | 18 | 9 | 18 | 8x6.5 | 130.81 | Matte Black |
