MR316 (MB)

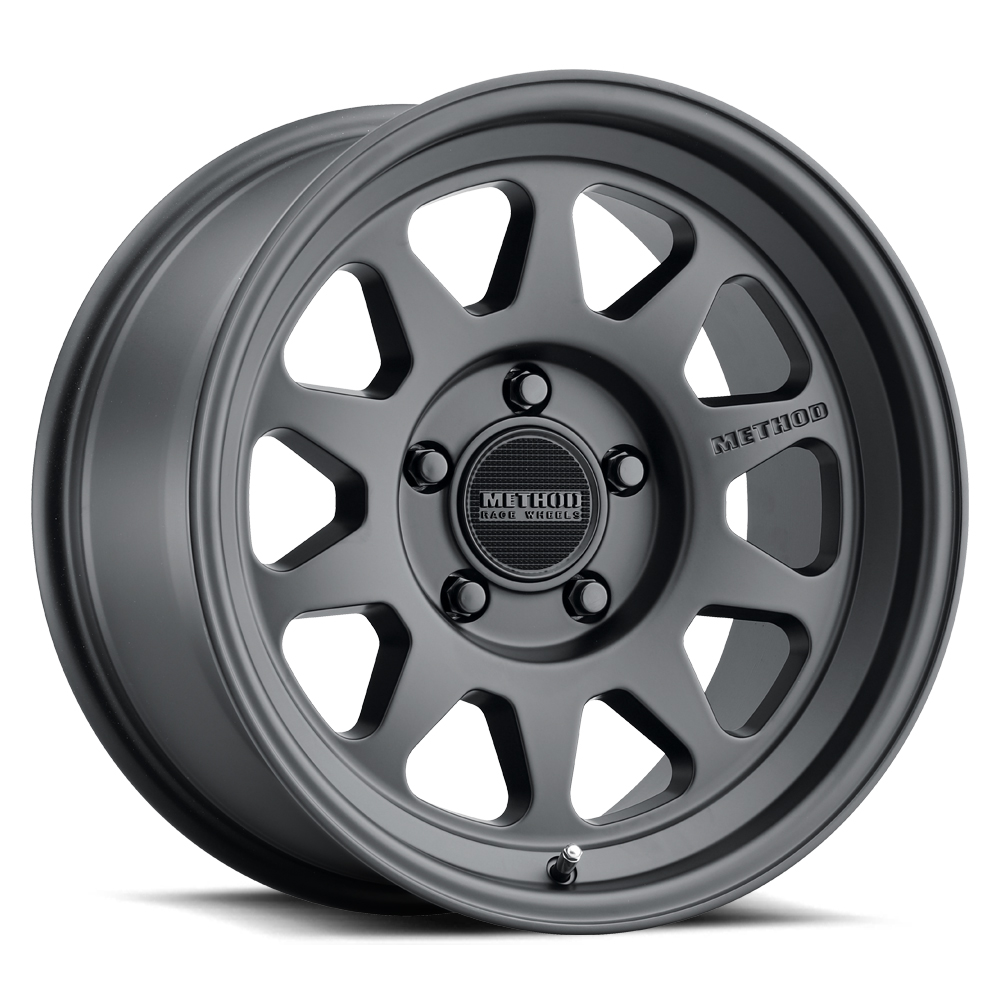

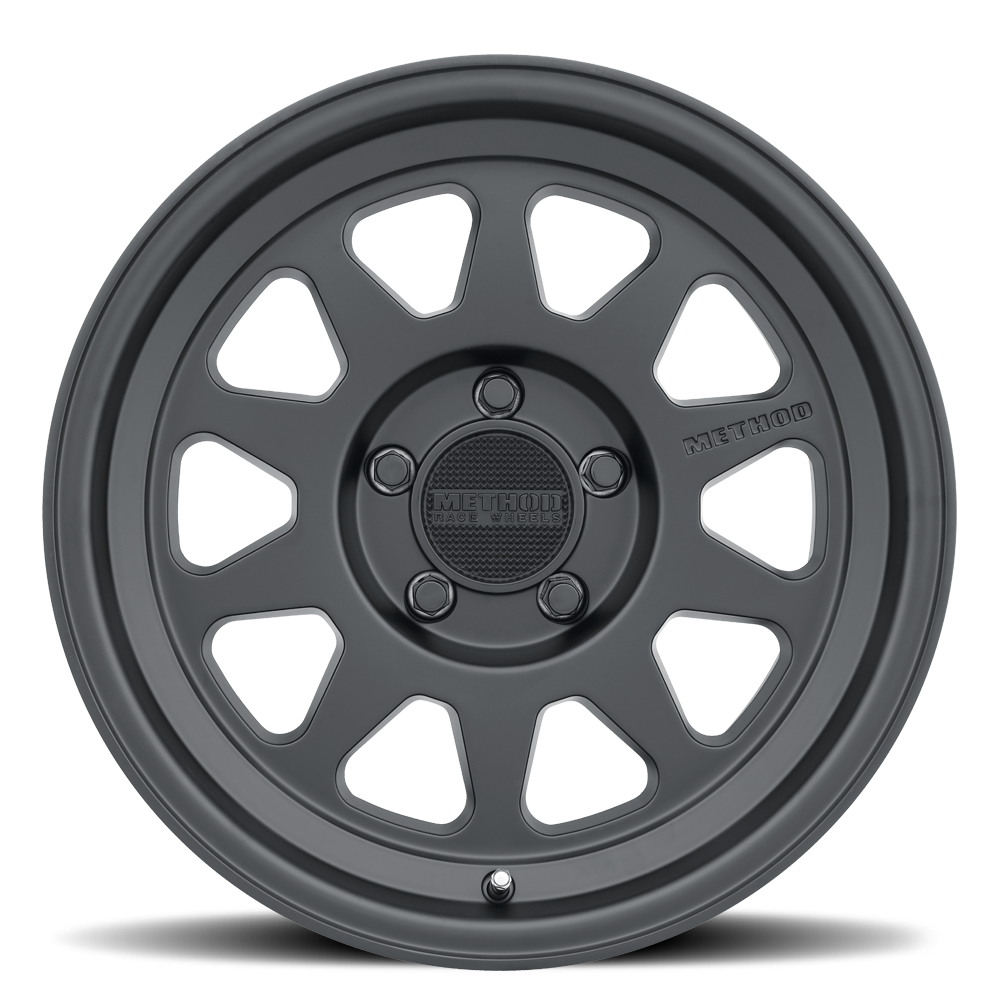

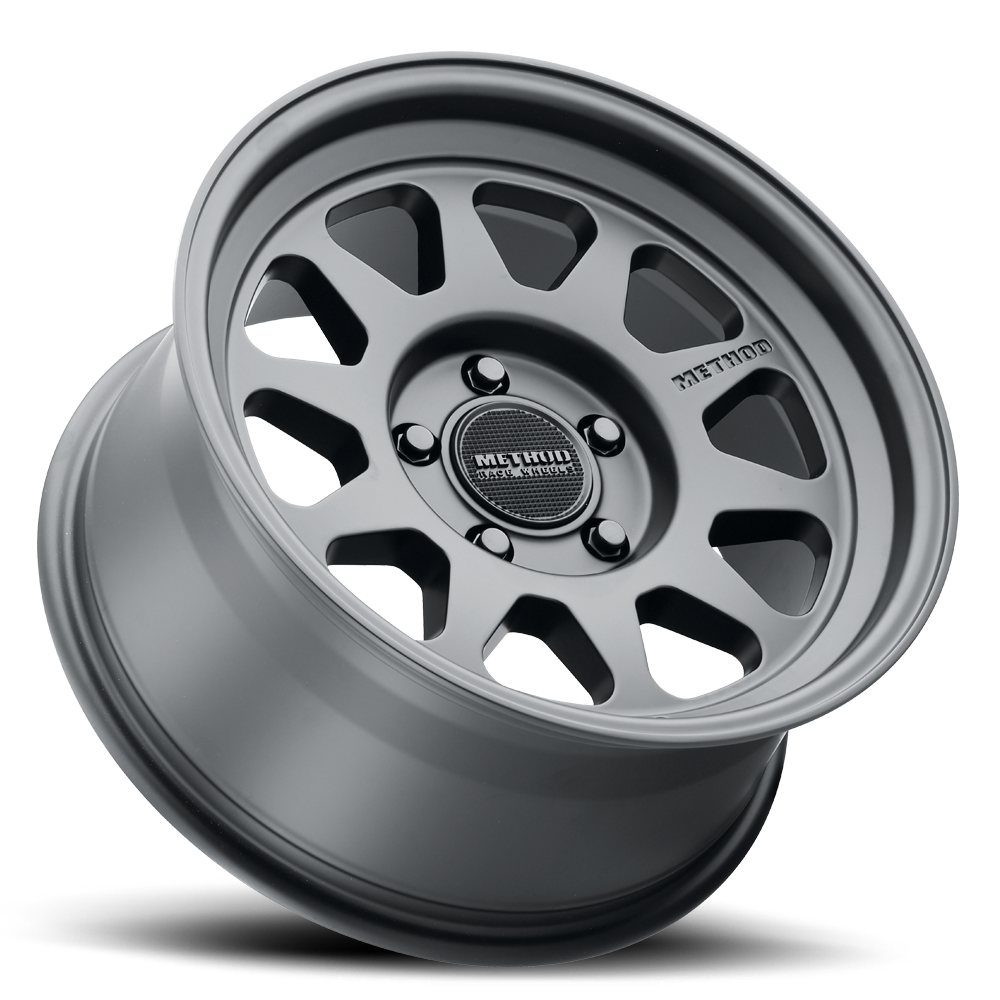

The 316 Standard Wheel features a rugged 10 window design, flat snap on center cap, and debossed METHOD logo on one of the spokes. With a strong 2,650 lbs. load rating and a lower price point, this wheel offers the best bang for your buck.
DETAILS
- Solid A356 aluminum with T6 heat treatment construction
- 10 window design with debossed METHOD logo
- Snap in center cap with embossed METHOD logo
- Additional snap-in center caps available
- Hub centric fitments for common applications
- Industry’s best lifetime structural warranty
- Strong 2650 lbs. load rating
Available Finishes
Wheel Specs
| Part Number | Diameter | Width | Offset (mm) | Bolt Pattern | Centre Bore | Finish |
|---|---|---|---|---|---|---|
| MR316290501318 | 20 | 9 | 18 | 5x5 | 71.5 | Gloss Black |
| MR316290161318 | 20 | 9 | 18 | 6x135 | 87 | Gloss Black |
| MR316290601318 | 20 | 9 | 18 | 6x5.5 | 106.25 | Gloss Black |
| MR316290601300 | 20 | 9 | 0 | 6x5.5 | 106.25 | Gloss Black |
| MR316210501318N | 20 | 10 | -18 | 5x5 | 71.5 | Gloss Black |
| MR316210161318N | 20 | 10 | -18 | 6x135 | 87 | Gloss Black |
| MR316210601318N | 20 | 10 | -18 | 6x5.5 | 106.25 | Gloss Black |
| MR31678050825 | 17 | 8 | 25 | 5x5 | 71.5 | Gloss Titanium |
| MR31678058825 | 17 | 8 | 25 | 5x150 | 110.5 | Gloss Titanium |
| MR31678062825 | 17 | 8 | 25 | 6x120 | 67 | Gloss Titanium |
| MR31678016825 | 17 | 8 | 25 | 6x135 | 87 | Gloss Titanium |
| MR31678060825 | 17 | 8 | 25 | 6x5.5 | 106.25 | Gloss Titanium |
| MR31678550800 | 17 | 8.5 | 0 | 5x5 | 71.5 | Gloss Titanium |
| MR31678558800 | 17 | 8.5 | 0 | 5x150 | 110.5 | Gloss Titanium |
| MR31678516800 | 17 | 8.5 | 0 | 6x135 | 87 | Gloss Titanium |
| MR31678560800 | 17 | 8.5 | 0 | 6x5.5 | 106.25 | Gloss Titanium |
| MR31689058818 | 18 | 9 | 18 | 5x150 | 110.5 | Gloss Titanium |
| MR31689016818 | 18 | 9 | 18 | 6x135 | 87 | Gloss Titanium |
| MR31689060818 | 18 | 9 | 18 | 6x5.5 | 106.25 | Gloss Titanium |
| MR31629050818 | 20 | 9 | 18 | 5x5 | 71.5 | Gloss Titanium |
| MR31629016818 | 20 | 9 | 18 | 6x135 | 87 | Gloss Titanium |
| MR31629060818 | 20 | 9 | 18 | 6x5.5 | 106.25 | Gloss Titanium |
| MR31629060800 | 20 | 9 | 0 | 6x5.5 | 106.25 | Gloss Titanium |
| MR31621050818N | 20 | 10 | -18 | 5x5 | 71.5 | Gloss Titanium |
| MR31621016818N | 20 | 10 | -18 | 6x135 | 87 | Gloss Titanium |
| MR31621060818N | 20 | 10 | -18 | 6x5.5 | 106.25 | Gloss Titanium |
| MR31678050525 | 17 | 8 | 25 | 5x5 | 71.5 | Matte Black |
| MR31678058525 | 17 | 8 | 25 | 5x150 | 110.5 | Matte Black |
| MR31678062525 | 17 | 8 | 25 | 6x120 | 67 | Matte Black |
| MR31678016525 | 17 | 8 | 25 | 6x135 | 87 | Matte Black |
| MR31678060525 | 17 | 8 | 25 | 6x5.5 | 106.25 | Matte Black |
| MR31678550500 | 17 | 8.5 | 0 | 5x5 | 71.5 | Matte Black |
| MR31678558500 | 17 | 8.5 | 0 | 5x150 | 110.5 | Matte Black |
| MR31678562500 | 17 | 8.5 | 0 | 6x120 | 67 | Matte Black |
| MR31678516500 | 17 | 8.5 | 0 | 6x135 | 87 | Matte Black |
| MR31678560500 | 17 | 8.5 | 0 | 6x5.5 | 106.25 | Matte Black |
| MR31689058518 | 18 | 9 | 18 | 5x150 | 110.5 | Matte Black |
| MR31689016518 | 18 | 9 | 18 | 6x135 | 87 | Matte Black |
| MR31689060518 | 18 | 9 | 18 | 6x5.5 | 106.25 | Matte Black |
