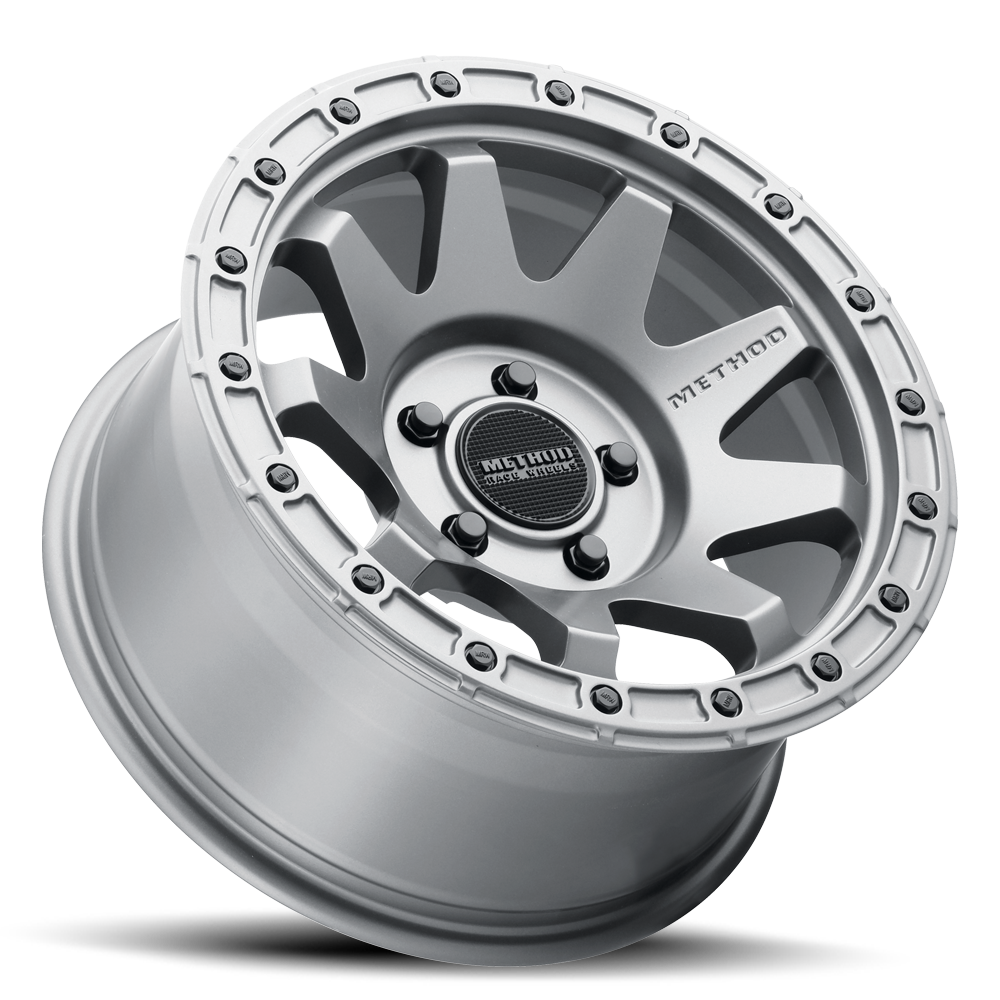

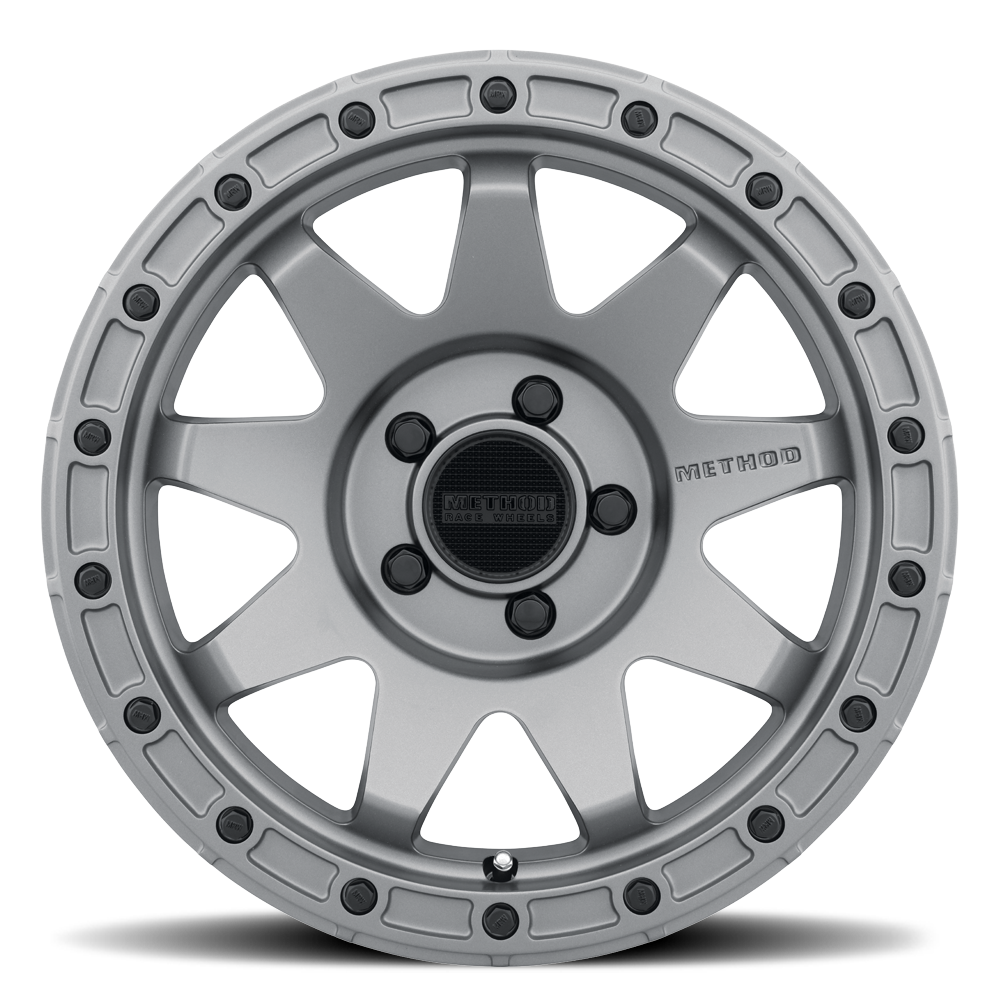

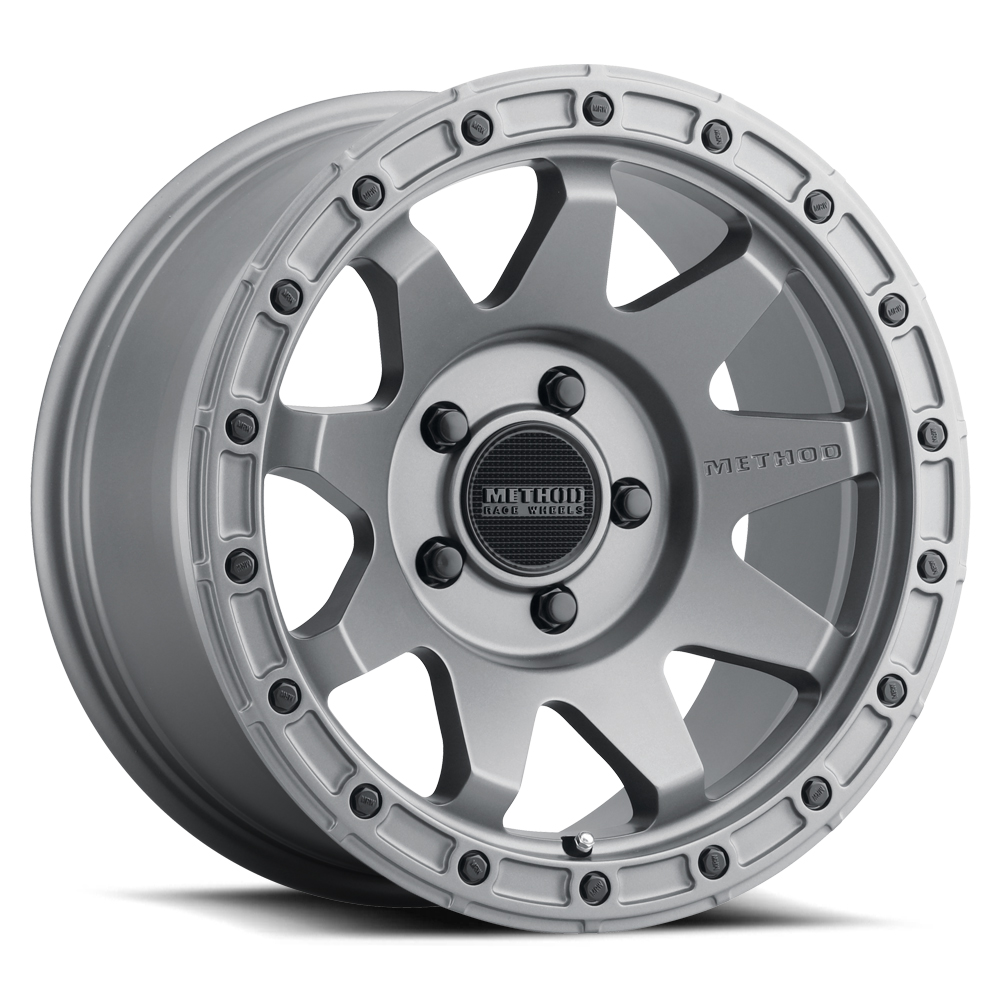

MR317 (TT)
The 317 Standard Wheel sports a tough nine spoke design. The lip undercut simulates a true beadlock and takes styling cues from our rugged, rock-crawling V.3 beadlock ring. It boasts a strong 2,650-3,640 lbs. on tires up to 37 inches.
DETAILS
- Solid A356 aluminum with T6 heat treatment construction
- Tough 9 spoke design with debossed METHOD logo on spoke
- Street-Loc V.3 inspired lip with weight savings pockets
- Replaceable MRW lip bolts with optional colors available
- Snap in center cap with embossed METHOD logo
- Push through cap embossed METHOD logo for 8 lug applications
- Hub centric fitments for common applications
- Industry’s best lifetime structural warranty
- Strong 2650 lbs. to 3640 lbs. load ratings on tires up to 37 inches
Available Finishes
Wheel Specs
| Part Number | Diameter | Width | Offset (mm) | Bolt Pattern | Centre Bore | Finish |
|---|---|---|---|---|---|---|
| MR31778550500 | 17 | 8.5 | 0 | 5x5 | 71.5 | Matte Black |
| MR31778558500 | 17 | 8.5 | 0 | 5x150 | 110.5 | Matte Black |
| MR31778562500 | 17 | 8.5 | 0 | 6x120 | 67 | Matte Black |
| MR31778516500 | 17 | 8.5 | 0 | 6x135 | 87 | Matte Black |
| MR31778560500 | 17 | 8.5 | 0 | 6x5.5 | 106.25 | Matte Black |
| MR31778580500 | 17 | 8.5 | 0 | 8x6.5 | 130.81 | Matte Black |
| MR31778587500 | 17 | 8.5 | 0 | 8x170 | 130.81 | Matte Black |
| MR31779050512N | 17 | 9 | -12 | 5x5 | 71.5 | Matte Black |
| MR31779055512N | 17 | 9 | -12 | 5x5.5 | 108 | Matte Black |
| MR31779060512N | 17 | 9 | -12 | 6x5.5 | 106.25 | Matte Black |
| MR31779080512N | 17 | 9 | -12 | 8x6.5 | 130.81 | Matte Black |
| MR31789058518 | 18 | 9 | 18 | 5x150 | 110.5 | Matte Black |
| MR31789016518 | 18 | 9 | 18 | 6x135 | 87 | Matte Black |
| MR31789060518 | 18 | 9 | 18 | 6x5.5 | 106.25 | Matte Black |
| MR31789080518 | 18 | 9 | 18 | 8x6.5 | 130.81 | Matte Black |
| MR31789087518 | 18 | 9 | 18 | 8x170 | 130.81 | Matte Black |
| MR31789088518 | 18 | 9 | 18 | 8x180 | 130.81 | Matte Black |
| MR31789060503 | 18 | 9 | 3 | 6x5.5 | 106.25 | Matte Black |
| MR31729058518 | 20 | 9 | 18 | 5x150 | 110.5 | Matte Black |
| MR31729060518 | 20 | 9 | 18 | 6x5.5 | 106.25 | Matte Black |
| MR31729080518 | 20 | 9 | 18 | 8x6.5 | 130.81 | Matte Black |
| MR31729087518 | 20 | 9 | 18 | 8x170 | 130.81 | Matte Black |
| MR31729088518 | 20 | 9 | 18 | 8x180 | 130.81 | Matte Black |
| MR31729060500 | 20 | 9 | 0 | 6x5.5 | 106.25 | Matte Black |
| MR31778550800 | 17 | 8.5 | 0 | 5x5 | 71.5 | Titanium |
| MR31778558800 | 17 | 8.5 | 0 | 5x150 | 110.5 | Titanium |
| MR31778516800 | 17 | 8.5 | 0 | 6x135 | 87 | Titanium |
| MR31778560800 | 17 | 8.5 | 0 | 6x5.5 | 106.25 | Titanium |
| MR31778580800 | 17 | 8.5 | 0 | 8x6.5 | 130.81 | Titanium |
| MR31779050812N | 17 | 9 | -12 | 5x5 | 71.5 | Titanium |
| MR31779055812N | 17 | 9 | -12 | 5x5.5 | 108 | Titanium |
| MR31779060812N | 17 | 9 | -12 | 6x5.5 | 106.25 | Titanium |
| MR31779080812N | 17 | 9 | -12 | 8x6.5 | 130.81 | Titanium |
| MR31789058818 | 18 | 9 | 18 | 5x150 | 110.5 | Titanium |
| MR31789016818 | 18 | 9 | 18 | 6x135 | 87 | Titanium |
| MR31789060818 | 18 | 9 | 18 | 6x5.5 | 106.25 | Titanium |
| MR31789080818 | 18 | 9 | 18 | 8x6.5 | 130.81 | Titanium |
| MR31789087818 | 18 | 9 | 18 | 8x170 | 130.81 | Titanium |
| MR31789060803 | 18 | 9 | 3 | 6x5.5 | 106.25 | Titanium |
| MR31729058818 | 20 | 9 | 18 | 5x150 | 110.5 | Titanium |
| MR31729060818 | 20 | 9 | 18 | 6x5.5 | 106.25 | Titanium |
| MR31729080818 | 20 | 9 | 18 | 8x6.5 | 130.81 | Titanium |
| MR31729087818 | 20 | 9 | 18 | 8x170 | 130.81 | Titanium |
| MR31729088818 | 20 | 9 | 18 | 8x180 | 130.81 | Titanium |
| MR31729060800 | 20 | 9 | 0 | 6x5.5 | 106.25 | Titanium |
