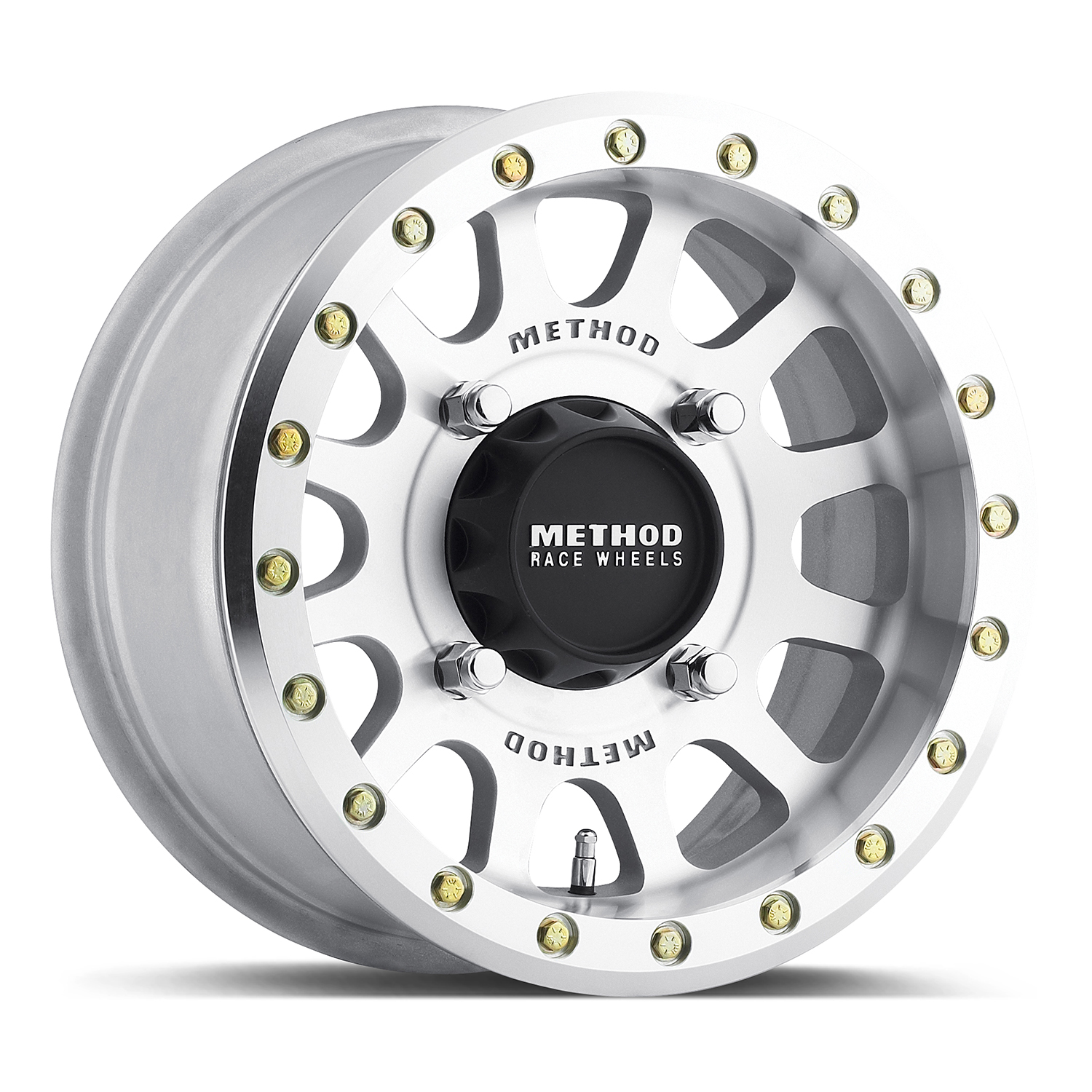

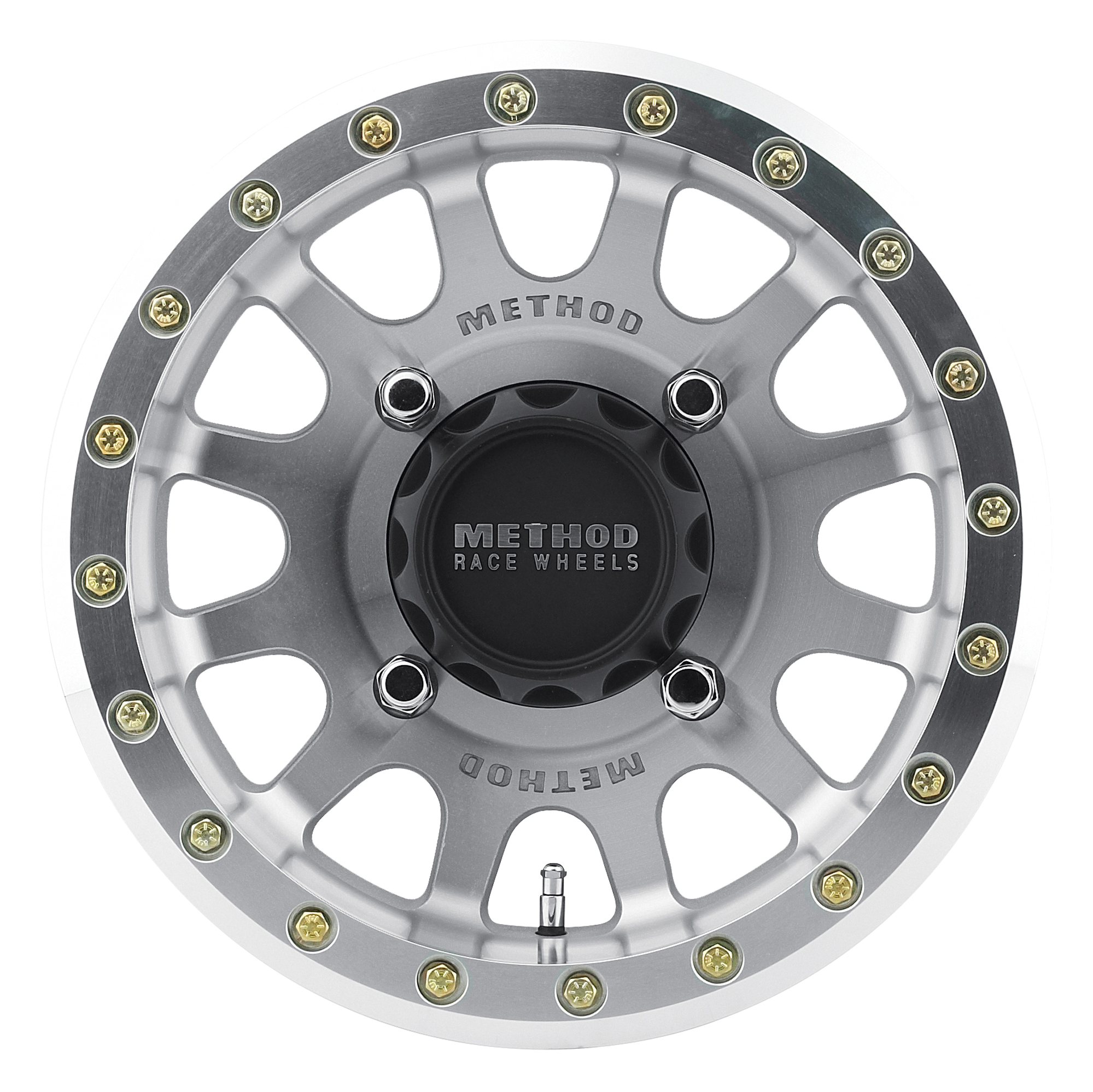

MR401 UTV Beadlock (MR)
The 401 Beadlock UTV wheel was developed for the serious off-road enthusiast and boasts an iconic 12 window design. It also features a push-through center cap with embossed Method Race Wheels logo. The Schrader valve was strategically placed between wheel spokes for extra protection in harsh riding environments.
DETAILS
- Solid A356 aluminum with T6 heat treatment construction
- Iconic 12 window design with debossed METHOD logos
- Reinforced inner lip provides extreme strength and durability
- Protected Schrader valve place between wheel spokes
- Forged 6061 aluminum V.1 beadlock ring
- Grade 8 zinc-plated beadlock hardware kit included
- Push-through center cap with embossed Method Race Wheels logo
- Super strong 1600 lbs. load rating
Available Finishes
Wheel Specs
| Part Number | Diameter | Width | Offset (mm) | Bolt Pattern | Centre Bore | Finish |
|---|---|---|---|---|---|---|
| MR40147047543B | 14 | 7 | 13 | 4x136 | 106 | Matte Black |
| MR40147047552B | 14 | 7 | 38 | 4x136 | 106 | Matte Black |
| MR40147046543B | 14 | 7 | 13 | 4x156 | 132 | Matte Black |
| MR40147046552B | 14 | 7 | 38 | 4x156 | 132 | Matte Black |
| MR40156047551B | 15 | 6 | 53 | 4x136 | 106 | Matte Black |
| MR40156046551B | 15 | 6 | 53 | 4x156 | 132 | Matte Black |
| MR40156012551B | 15 | 6 | 49 | 5x4.5 | 72 | Matte Black |
| MR40157047543B | 15 | 7 | 13 | 4x136 | 106 | Matte Black |
| MR40157046543B | 15 | 7 | 13 | 4x156 | 132 | Matte Black |
| MR40157047552B | 15 | 7 | 38 | 4x136 | 106 | Matte Black |
| MR40157046552B | 15 | 7 | 38 | 4x156 | 132 | Matte Black |
| MR40147047352B | 14 | 7 | 38 | 4x136 | 106 | Machined - Raw |
| MR40147046343B | 14 | 7 | 13 | 4x156 | 132 | Machined - Raw |
| MR40147046352B | 14 | 7 | 38 | 4x156 | 132 | Machined - Raw |
| MR40157046343B | 15 | 7 | 13 | 4x156 | 132 | Machined - Raw |
| MR40147047843B | 14 | 7 | 13 | 4x136 | 106 | Titanium - Matte Black Ring |
| MR40147046843B | 14 | 7 | 13 | 4x156 | 132 | Titanium - Matte Black Ring |
| MR40147046852B | 14 | 7 | 38 | 4x156 | 132 | Titanium - Matte Black Ring |
| MR40156047851B | 15 | 6 | 53 | 4x136 | 106 | Titanium - Matte Black Ring |
| MR40156046851B | 15 | 6 | 53 | 4x156 | 132 | Titanium - Matte Black Ring |
| MR40156012851B | 15 | 6 | 49 | 5x4.5 | 72 | Titanium - Matte Black Ring |
| MR40157047843B | 15 | 7 | 13 | 4x136 | 106 | Titanium - Matte Black Ring |
| MR40157046843B | 15 | 7 | 13 | 4x156 | 132 | Titanium - Matte Black Ring |
| MR40157047852B | 15 | 7 | 38 | 4x136 | 106 | Titanium - Matte Black Ring |
| MR40157046852B | 15 | 7 | 38 | 4x156 | 132 | Titanium - Matte Black Ring |
