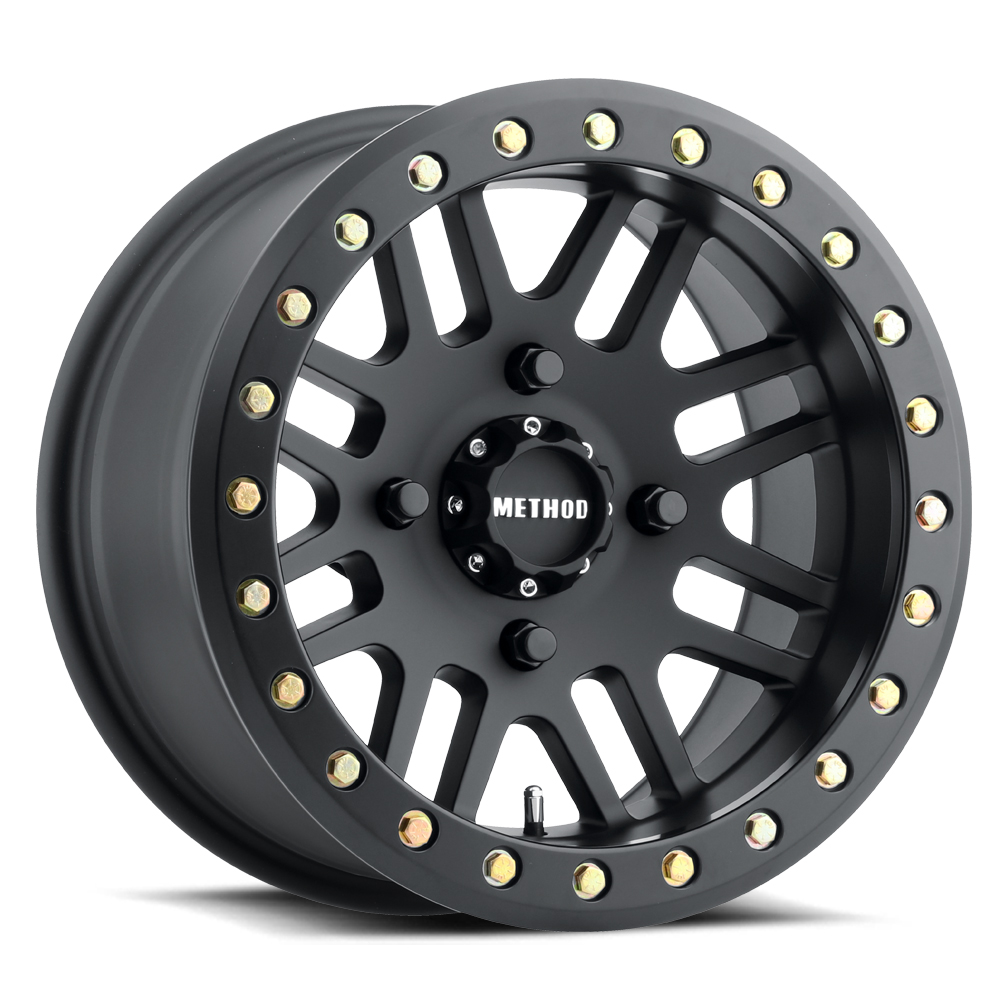

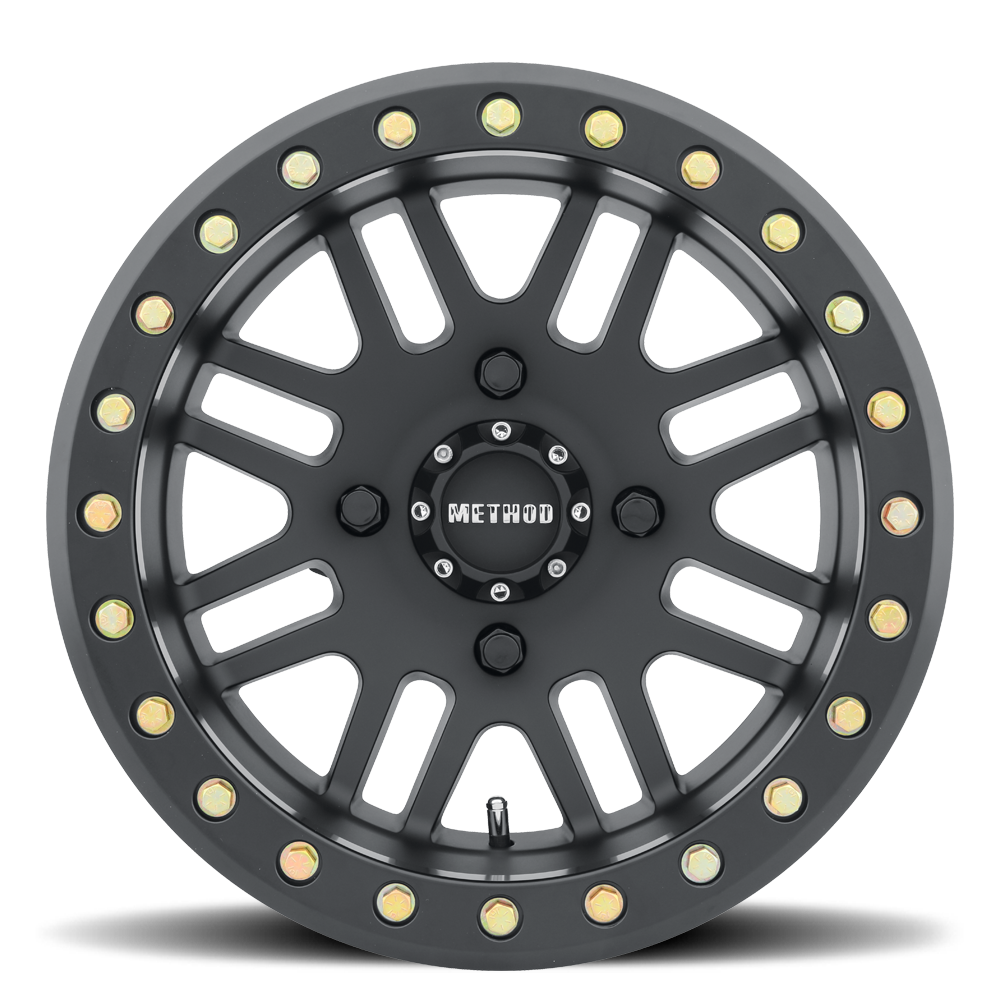

MR406 UTV Beadlock (MB)
The 406 Beadlock UTV wheel brings the 306 truck wheel mesh-style design to the UTV lineup. Its offsets are optimized for staggered fitments when running paddle tires. They have been over-engineered to exceed SAE 2530 specification and a reinforced inner lip provides extreme strength and durability.
DETAILS
- Solid A356 aluminum with T6 heat treatment construction
- Clean 8 windowed spoke design with debossed METHOD logo
- Reinforced inner lip provides extreme strength and durability
- Over-engineered to exceed SAE 2530 specifications
- Forged 6061 aluminum V.1 beadlock ring
- Grade 8 zinc-plated beadlock hardware kit included
- Screw-on center cap with embossed METHOD logo
- Super strong 1600 lbs. load rating
Wheel Specs
Part Number | Diameter | Width | Offset (mm) | Bolt Pattern | Centre Bore | Finish |
---|---|---|---|---|---|---|
MR40648047544B | 14 | 8 | 0 | 4x136 | 106 | Matte Black |
MR40648046544B | 14 | 8 | -2 | 4x156 | 132 | Matte Black |
MR40641047555B | 14 | 10 | 0 | 4x136 | 106 | Matte Black |
MR40641046555B | 14 | 10 | -2 | 4x156 | 132 | Matte Black |
MR40658047544B | 15 | 8 | 0 | 4x136 | 106 | Matte Black |
MR40658046544B | 15 | 8 | -2 | 4x156 | 132 | Matte Black |
MR40651047555B | 15 | 10 | 0 | 4x136 | 106 | Matte Black |
MR40651046555B | 15 | 10 | -2 | 4x156 | 132 | Matte Black |
