MR502 RALLY (BR)

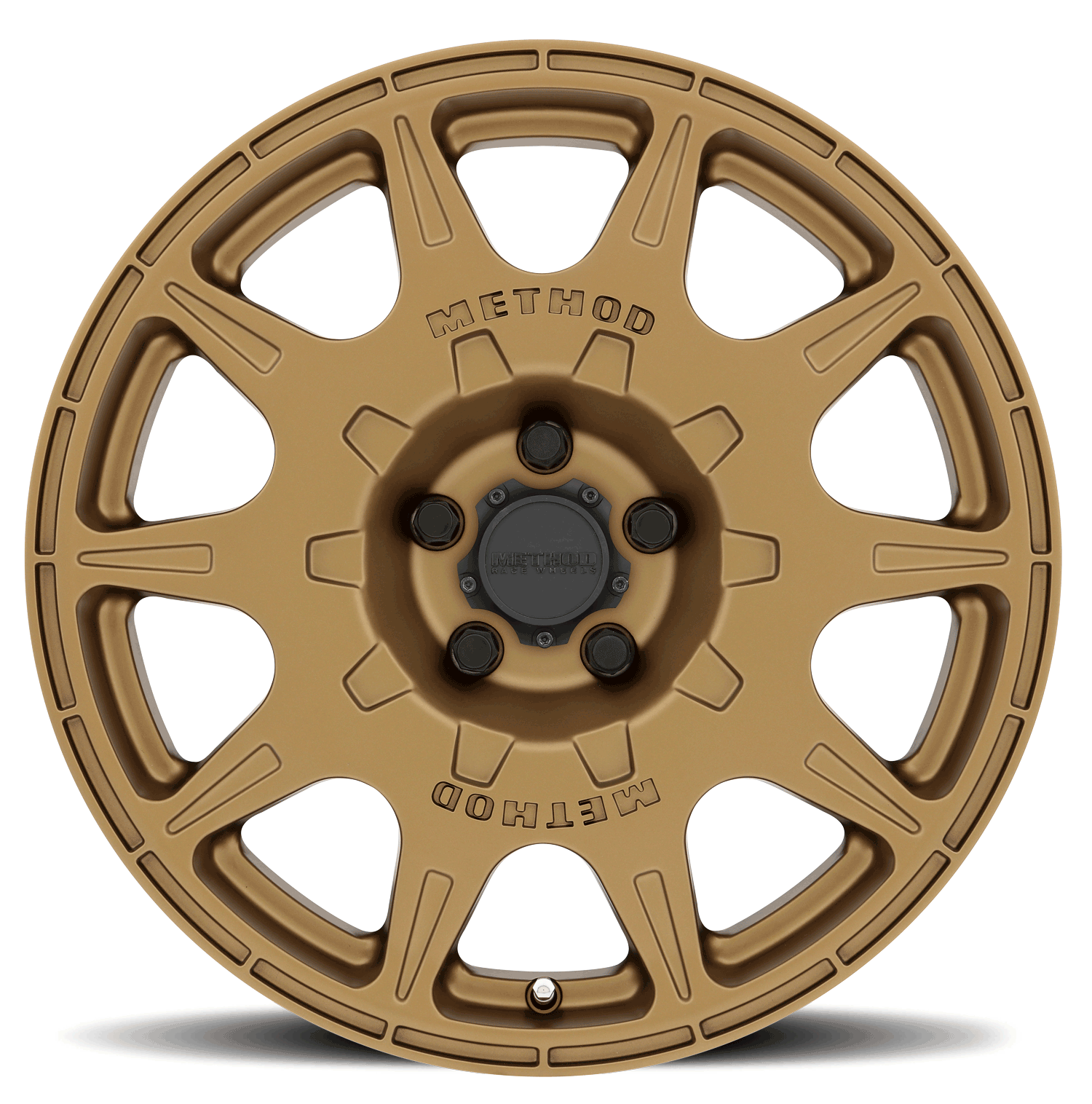

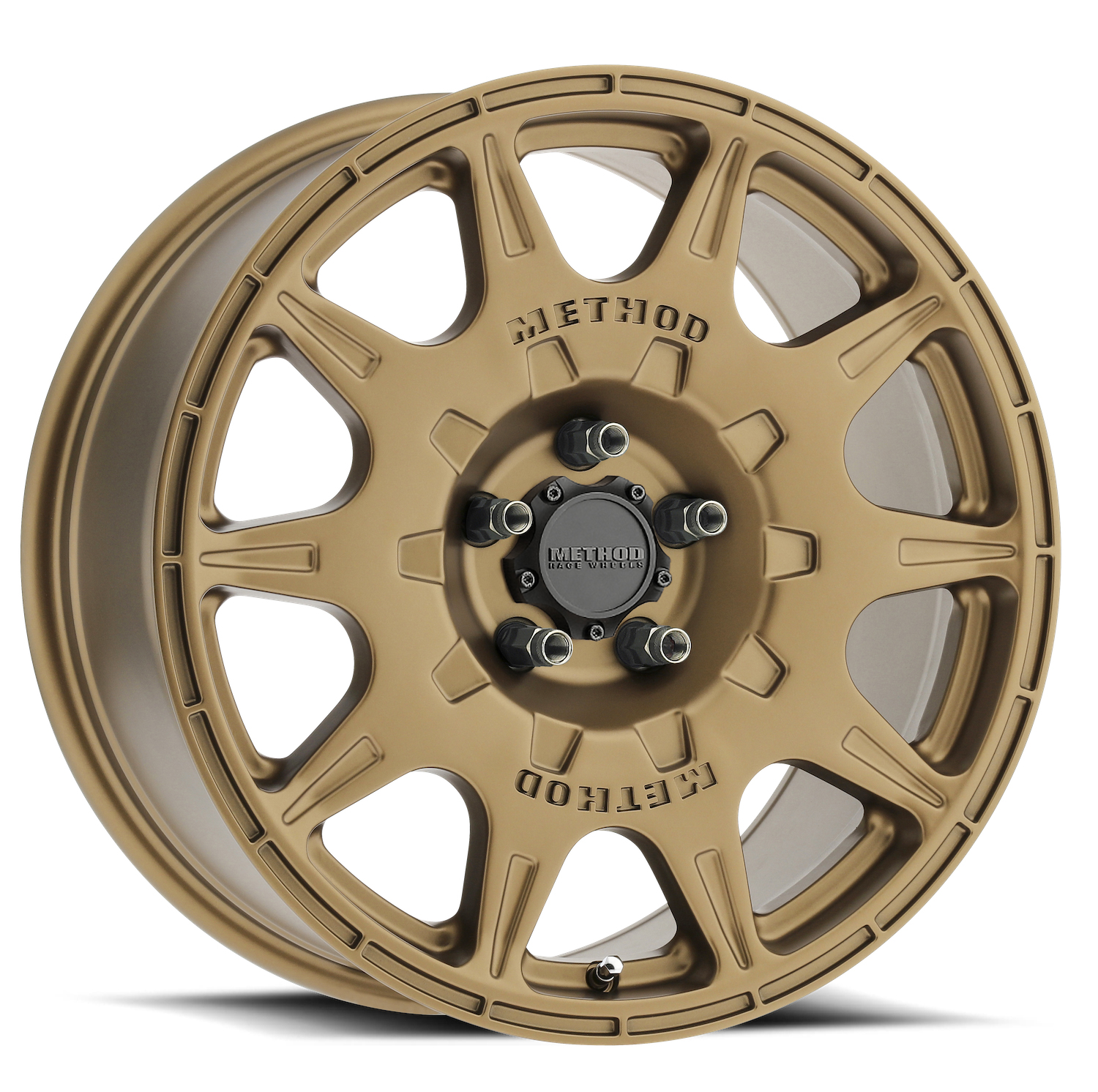

The 502 Rally Wheel features a unique 10 windowed design with a debossed METHOD logos. It has been over-engineered to exceed SAE 2530 specifications, with a strong 1850 lbs load rating and a screw-on center cap. Subaru STI owners will be excited to learn that the 502 Rally wheels will clear the Brembo brakes that came from the factory.
The MR502 is hub centric for Mitsubishi applications (67.1mm hubs) and will include a hub ring for Subaru fitment (56.1mm hubs).
The 17″ will clear all model year Subaru/Mitsubishi vehicles with Brembo Brakes.
The 18″ will clear Tesla Model Y Performance Package.
This wheel features a black one-piece screw-on center cap.
DETAILS
- Solid A356 aluminum with T6 heat treatment construction
- Unique 10 windowed design with debossed details and METHOD logos
- Over-engineered to exceed SAE 2530 specifications
- Screw-on center cap with embossed Method Race Wheels logo
- Hub centric fitments for common applications
- Industry’s best lifetime structural warranty
- Wheel will clear Subaru STI with Brembo brakes
- Strong 1850 lbs. load ratings
Available Finishes
Wheel Specs
| Part Number | Diameter | Width | Offset (mm) | Bolt Pattern | Centre Bore | Finish |
|---|---|---|---|---|---|---|
| MR50278051938 | 17 | 8 | 38 | 5x100 | 67.1 | Bronze |
| MR50278051938-2 | 17 | 8 | 38 | 5x100 | 67.1 | Bronze |
| MR50278012938-2 | 17 | 8 | 38 | 5x4.5 | 67.1 | Bronze |
| MR50278012138-2 | 17 | 8 | 38 | 5x4.5 | 67.1 | Gold |
| MR50267051515 | 16 | 7 | 15 | 5x100 | 67.1 | Matte Black |
| MR50267051515-2 | 16 | 7 | 15 | 5x100 | 67.1 | Matte Black |
| MR50267012515 | 16 | 7 | 15 | 5x4.5 | 67.1 | Matte Black |
| MR50267012515-2 | 16 | 7 | 15 | 5x4.5 | 67.1 | Matte Black |
| MR50267051530 | 16 | 7 | 30 | 5x100 | 67.1 | Matte Black |
| MR50267051530-2 | 16 | 7 | 30 | 5x100 | 67.1 | Matte Black |
| MR50267049530 | 16 | 7 | 30 | 5x108 | 63.4 | Matte Black |
| MR50267049530-2 | 16 | 7 | 30 | 5x108 | 63.4 | Matte Black |
| MR50267054530 | 16 | 7 | 30 | 5x110 | 65.1 | Matte Black |
| MR50267054530-2 | 16 | 7 | 30 | 5x110 | 65.1 | Matte Black |
| MR50267057530 | 16 | 7 | 30 | 5x112 | 66.7 | Matte Black |
| MR50267057530-2 | 16 | 7 | 30 | 5x112 | 66.7 | Matte Black |
| MR50267012530 | 16 | 7 | 30 | 5x4.5 | 67.1 | Matte Black |
| MR50267012530-2 | 16 | 7 | 30 | 5x4.5 | 67.1 | Matte Black |
| MR50278051538 | 17 | 8 | 38 | 5x100 | 67.1 | Matte Black |
| MR50278051538-2 | 17 | 8 | 38 | 5x100 | 67.1 | Matte Black |
| MR50278012538 | 17 | 8 | 38 | 5x4.5 | 67.1 | Matte Black |
| MR50278012538-2 | 17 | 8 | 38 | 5x4.5 | 67.1 | Matte Black |
| MR50278049538 | 17 | 8 | 38 | 5x108 | 63.4 | Matte Black |
| MR50278049538-2 | 17 | 8 | 38 | 5x108 | 63.4 | Matte Black |
| MR50288012538 | 18 | 8 | 38 | 5x4.5 | 67.1 | Matte Black |
| MR50288012538-2 | 18 | 8 | 38 | 5x4.5 | 67.1 | Matte Black |
| MR50278051838 | 17 | 8 | 38 | 5x100 | 67.1 | Titanium |
| MR50278051838-2 | 17 | 8 | 38 | 5x100 | 67.1 | Titanium |
| MR50278012838 | 17 | 8 | 38 | 5x4.5 | 67.1 | Titanium |
| MR50278012838-2 | 17 | 8 | 38 | 5x4.5 | 67.1 | Titanium |
