MR605 NV (GT)

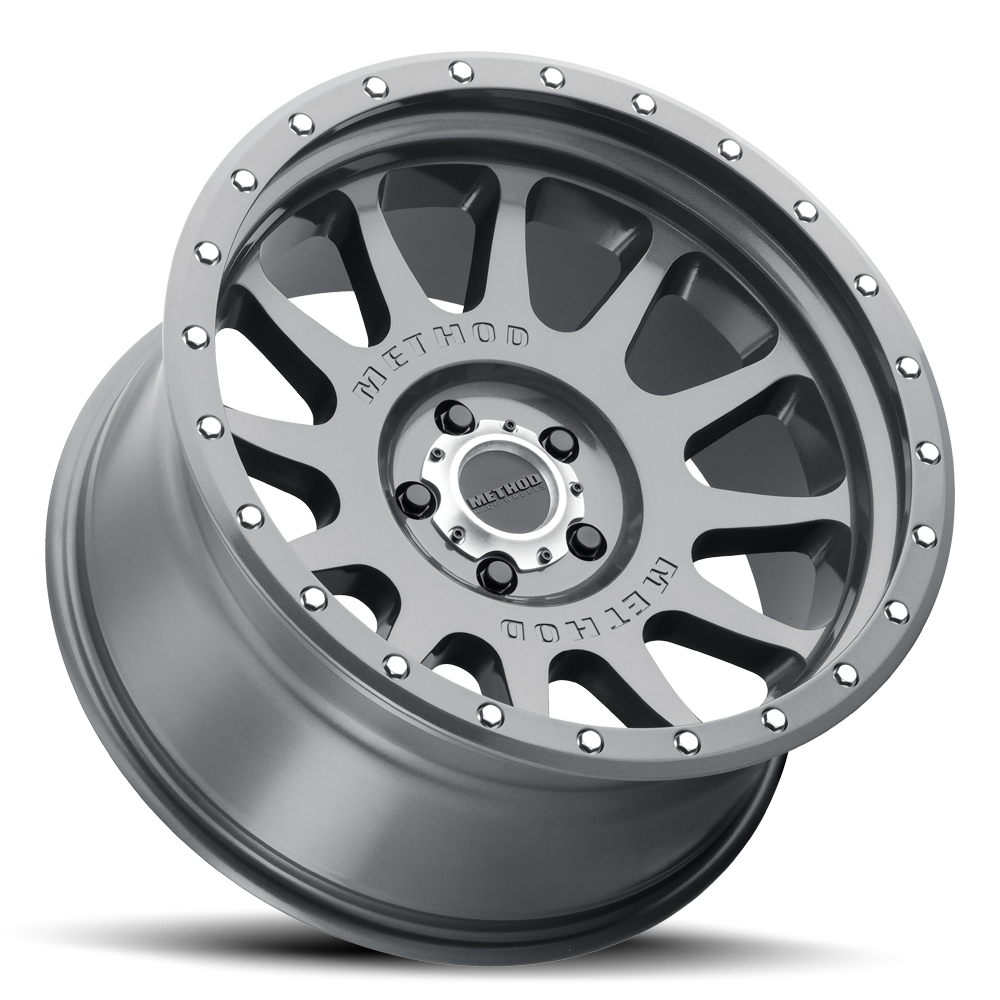

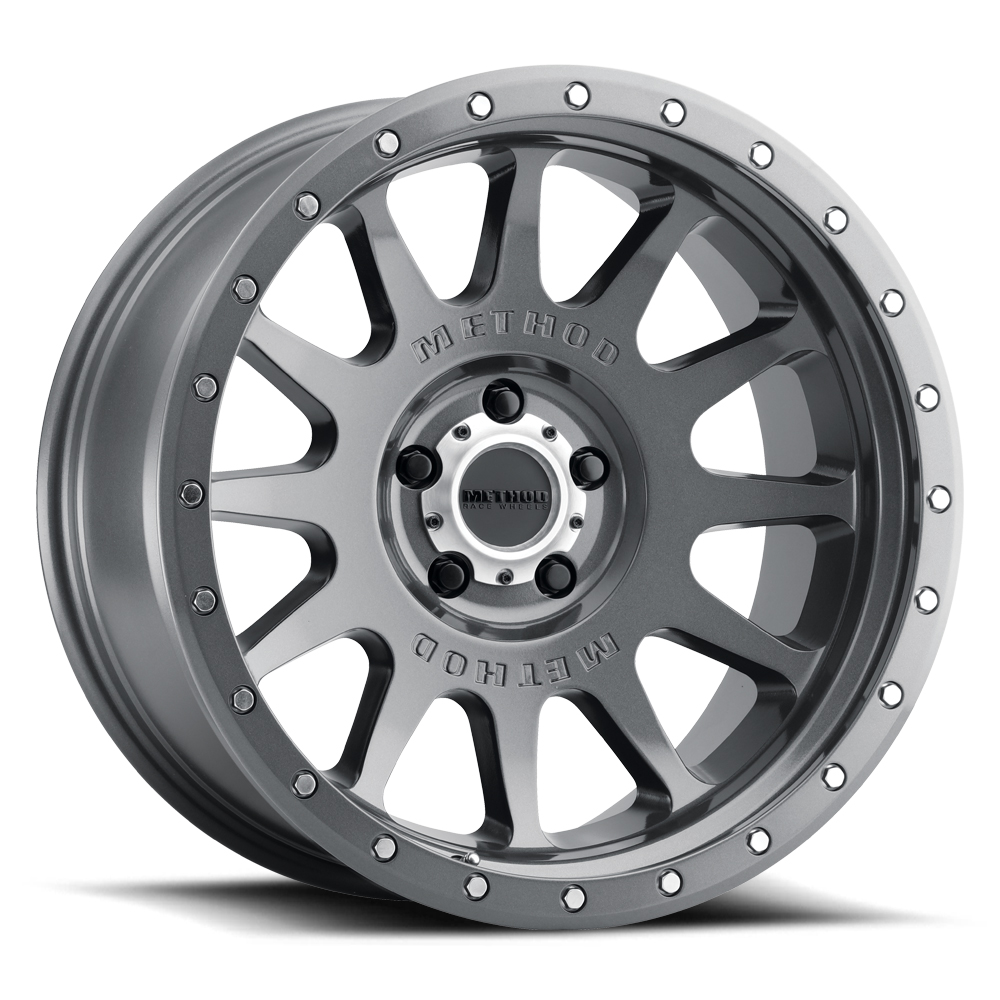

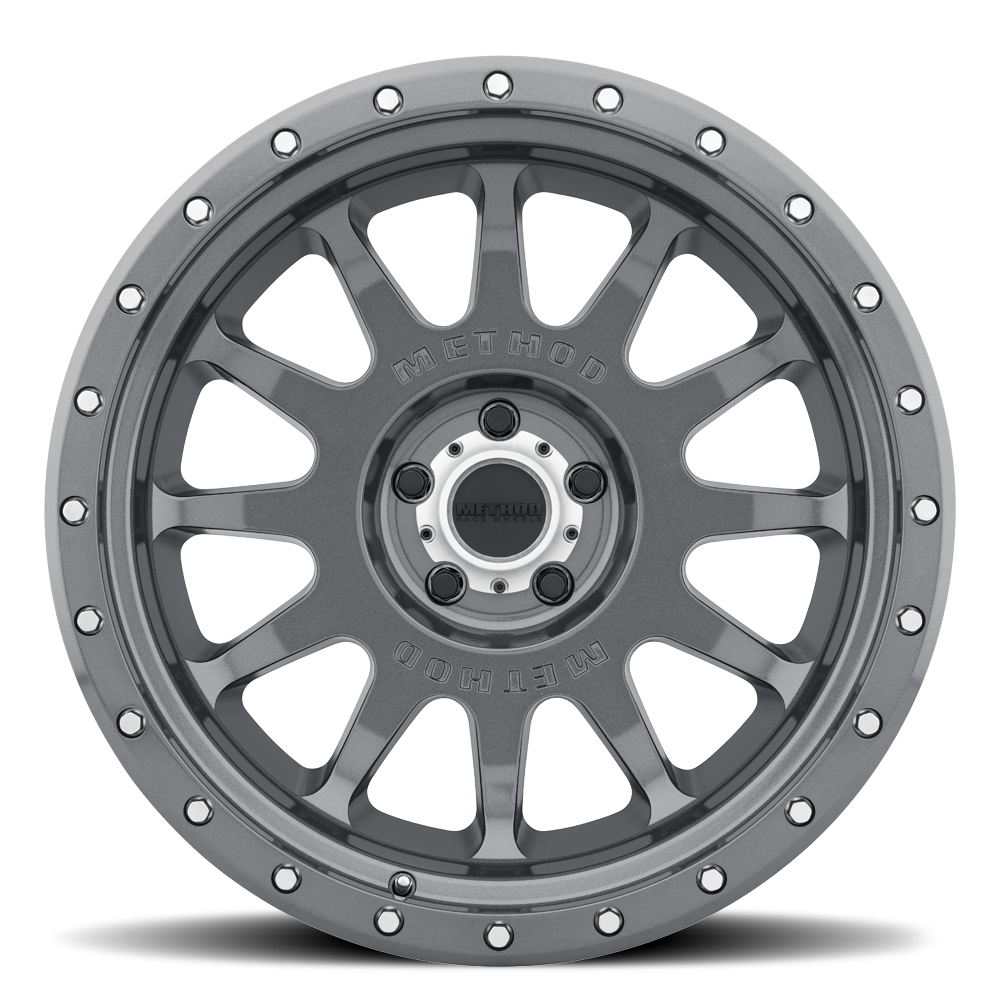

The 605 NV Wheel boasts an iconic 12 window design with debossed Method logos. The lip undercut simulates true beadlock wheels and has replaceable lip bolts with optional colors available. With a 20×10” wheel option, the 605 offers our largest offset available.
DETAILS
- Solid A356 aluminum with T6 heat treatment construction
- Iconic 12 window design with debossed METHOD logos
- Street-Loc V.1 lip with undercut simulates true beadlock wheel
- Replaceable MRW lip bolts with optional colors available
- Screw-on center cap with embossed METHOD logo
- Hub centric fitments for common applications
- Industry’s best lifetime structural warranty
- Strong 2650 lbs. to 3640 lbs. load ratings
Available Finishes
Wheel Specs
| Part Number | Diameter | Width | Offset (mm) | Bolt Pattern | Centre Bore | Finish |
|---|---|---|---|---|---|---|
| MR60521050924N | 20 | 10 | -24 | 5x5 | 71.5 | Method Bronze |
| MR60521016924N | 20 | 10 | -24 | 6x135 | 87 | Method Bronze |
| MR60521055924N | 20 | 10 | -24 | 5x5.5 | 108 | Method Bronze |
| MR60521060924N | 20 | 10 | -24 | 6x5.5 | 106.25 | Method Bronze |
| MR60521080924N | 20 | 10 | -24 | 8x6.5 | 121.3 | Method Bronze |
| MR60521087924N | 20 | 10 | -24 | 8x170 | 124.9 | Method Bronze |
| MR60521260952N | 20 | 12 | -52 | 6x5.5 | 106.25 | Method Bronze |
| MR60521280952N | 20 | 12 | -52 | 8x6.5 | 121.3 | Method Bronze |
| MR60521287952N | 20 | 12 | -52 | 8x170 | 124.9 | Method Bronze |
| MR60521050824N | 20 | 10 | -24 | 5x5 | 71.5 | Gloss Titanium |
| MR60521016824N | 20 | 10 | -24 | 6x135 | 87 | Gloss Titanium |
| MR60521055824N | 20 | 10 | -24 | 5x5.5 | 108 | Gloss Titanium |
| MR60521060824N | 20 | 10 | -24 | 6x5.5 | 106.25 | Gloss Titanium |
| MR60521080824N | 20 | 10 | -24 | 8x6.5 | 121.3 | Gloss Titanium |
| MR60521087824N | 20 | 10 | -24 | 8x170 | 124.9 | Gloss Titanium |
| MR60521088824N | 20 | 10 | -24 | 8x180 | 124.1 | Gloss Titanium |
| MR60529050512N | 20 | 9 | -12 | 5x5 | 71.5 | Matte Black |
| MR60529058512N | 20 | 9 | -12 | 5x150 | 110.5 | Matte Black |
| MR60529016512N | 20 | 9 | -12 | 6x135 | 87 | Matte Black |
| MR60529060512N | 20 | 9 | -12 | 6x5.5 | 106.25 | Matte Black |
| MR60529080512N | 20 | 9 | -12 | 8x6.5 | 121.3 | Matte Black |
| MR60529087512N | 20 | 9 | -12 | 8x170 | 124.9 | Matte Black |
| MR60529088512N | 20 | 9 | -12 | 8x180 | 124.1 | Matte Black |
| MR60521050524N | 20 | 10 | -24 | 5x5 | 71.5 | Matte Black |
| MR60521016524N | 20 | 10 | -24 | 6x135 | 87 | Matte Black |
| MR60521055524N | 20 | 10 | -24 | 5x5.5 | 108 | Matte Black |
| MR60521060524N | 20 | 10 | -24 | 6x5.5 | 106.25 | Matte Black |
| MR60521080524N | 20 | 10 | -24 | 8x6.5 | 121.3 | Matte Black |
| MR60521087524N | 20 | 10 | -24 | 8x170 | 124.9 | Matte Black |
| MR60521088524N | 20 | 10 | -24 | 8x180 | 124.1 | Matte Black |
| MR60521260552N | 20 | 12 | -52 | 6x5.5 | 106.25 | Matte Black |
| MR60521280552N | 20 | 12 | -52 | 8x6.5 | 121.3 | Matte Black |
| MR60521287552N | 20 | 12 | -52 | 8x170 | 124.9 | Matte Black |
| MR60521288552N | 20 | 12 | -52 | 8x180 | 124.1 | Matte Black |
| MR60521050324N | 20 | 10 | -24 | 5x5 | 71.5 | Machined - Clear Coat |
| MR60521016324N | 20 | 10 | -24 | 6x135 | 87 | Machined - Clear Coat |
| MR60521055324N | 20 | 10 | -24 | 5x5.5 | 108 | Machined - Clear Coat |
| MR60521060324N | 20 | 10 | -24 | 6x5.5 | 106.25 | Machined - Clear Coat |
| MR60521080324N | 20 | 10 | -24 | 8x6.5 | 121.3 | Machined - Clear Coat |
| MR60521087324N | 20 | 10 | -24 | 8x170 | 124.9 | Machined - Clear Coat |
| MR60521088324N | 20 | 10 | -24 | 8x180 | 124.1 | Machined - Clear Coat |
