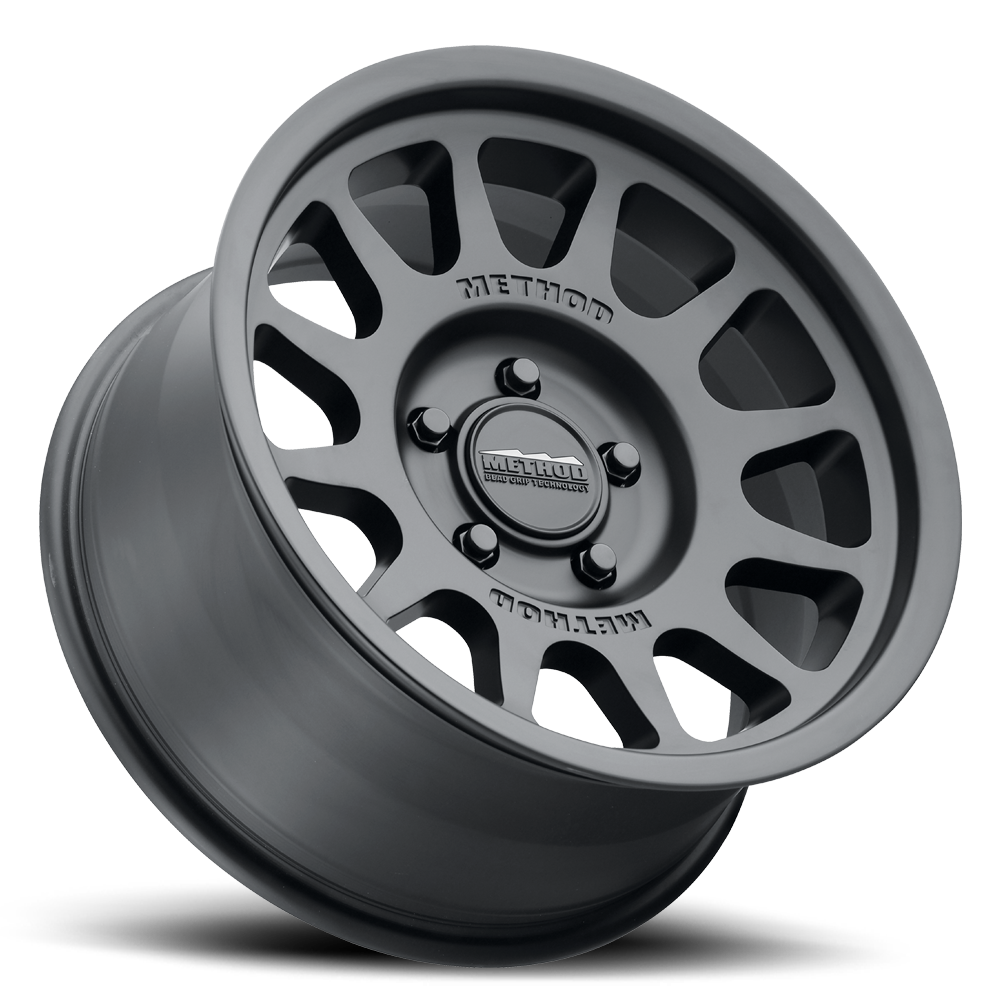

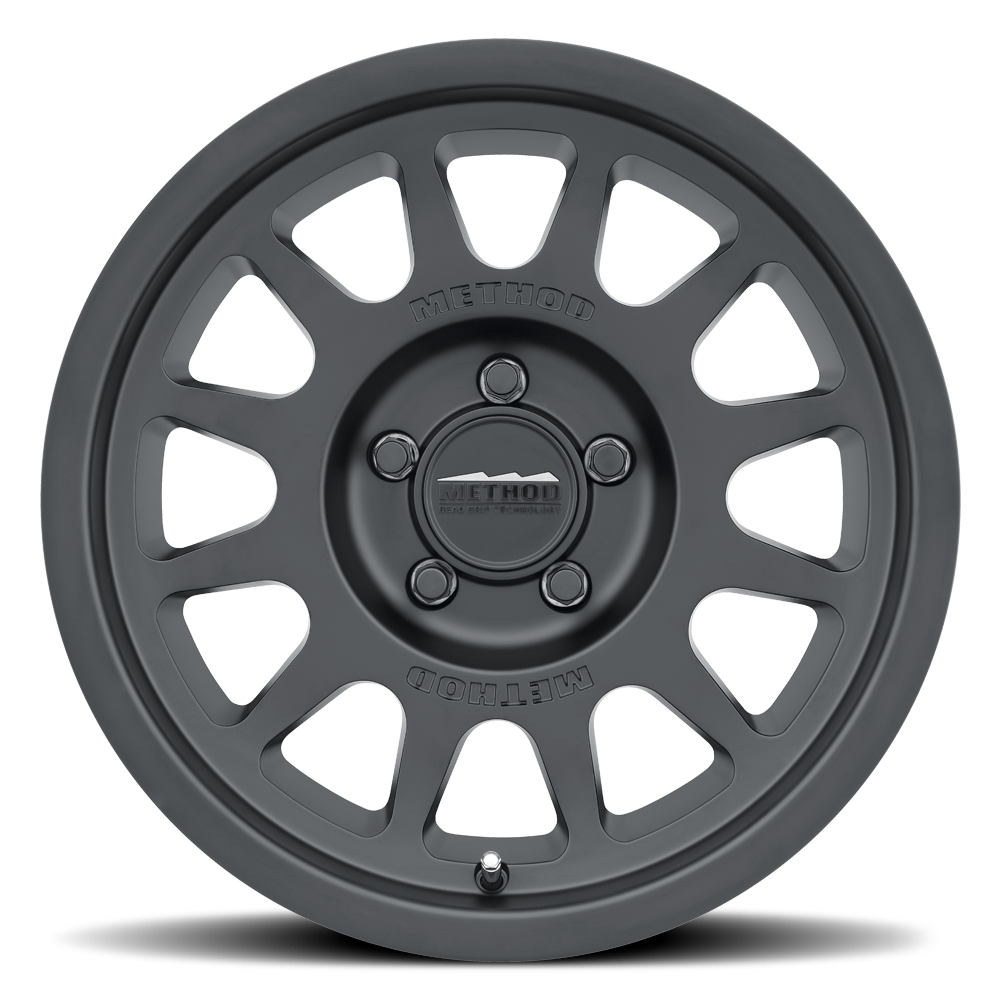

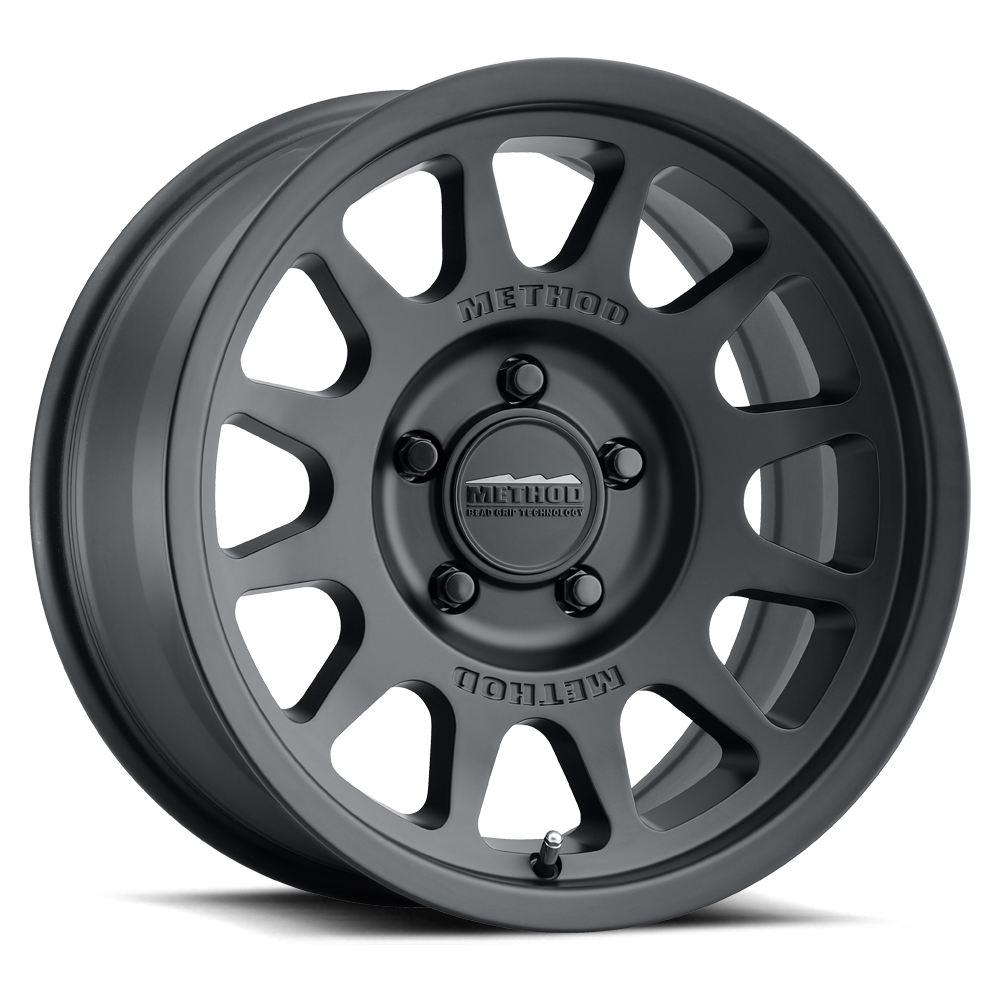

MR703 Bead Grip (MB)
The 703 Bead Grip® wheel was developed for off-road enthusiasts and designed to handle the toughest trails and your next overland adventure. An iconic 12 window design and dual debossed METHOD logos help set your ride apart from the rest.
The Bead Grip® technology allows deflation of tires down to pressures that previously would have required beadlock wheels to make sure tires didn’t debead. It’s advantageous to reduce tire inflation pressure while off-roading to increase a tire’s contact patch surface area for better traction on loose surfaces as well as improve ride comfort by effectively reducing the spring rate of the tire.
The 703 lineup also offers popular van fitments.
DETAILS
- Patented Bead Grip® technology engages tire bead for increased grip at low tire pressures
- Solid A356 aluminum with T6 heat treatment construction
- Iconic 12 window design with debossed METHOD logos
- Aggressive safety hump on bead seats further prevents debeading
- Reinforced inner lip taken from MRW race wheel increases strength
- Snap-in center cap with embossed METHOD Bead Grip® logo
- Push-through center cap with embossed METHOD Bead Grip® logo for 8 lug applications
- Hub centric fitments for common applications
- Industry’s best lifetime structural warranty
- Super strong 2650 lbs. and 3640 lbs. load ratings
Available Finishes
Wheel Specs
| Part Number | Diameter | Width | Offset (mm) | Bolt Pattern | Centre Bore | Finish |
|---|---|---|---|---|---|---|
| MR70357051915 | 15 | 7 | 15 | 5x100 | 56.1 | Bronze |
| MR70366053968 | 16 | 6 | 68 | 5x130 | 78.1 | Bronze |
| MR70366568990 | 16 | 6.5 | 90 | 6x180 | 138.9 | Bronze |
| MR70368060900 | 16 | 8 | 0 | 6x5.5 | 106.25 | Bronze |
| MR70377553950 | 17 | 7.5 | 50 | 5x130 | 78.1 | Bronze |
| MR70377556950 | 17 | 7.5 | 50 | 5x160 | 65 | Bronze |
| MR70377563950 | 17 | 7.5 | 50 | 6x130 | 84.1 | Bronze |
| MR70378550900 | 17 | 8.5 | 0 | 5x5 | 71.5 | Bronze |
| MR70378558900 | 17 | 8.5 | 0 | 5x150 | 110.5 | Bronze |
| MR70378516900 | 17 | 8.5 | 0 | 6x135 | 87 | Bronze |
| MR70378560900 | 17 | 8.5 | 0 | 6x5.5 | 106.25 | Bronze |
| MR70378580900 | 17 | 8.5 | 0 | 8x6.5 | 130.81 | Bronze |
| MR70378550925 | 17 | 8.5 | 25 | 5x5 | 71.5 | Bronze |
| MR70378558935 | 17 | 8.5 | 35 | 5x150 | 110.5 | Bronze |
| MR70378516925 | 17 | 8.5 | 25 | 6x135 | 87 | Bronze |
| MR70378560935 | 17 | 8.5 | 35 | 6x5.5 | 106.25 | Bronze |
| MR70379050912N | 17 | 9 | -12 | 5x5 | 71.5 | Bronze |
| MR70379055912N | 17 | 9 | -12 | 5x5.5 | 108 | Bronze |
| MR70379060912N | 17 | 9 | -12 | 6x5.5 | 106.25 | Bronze |
| MR70379080912N | 17 | 9 | -12 | 8x6.5 | 130.81 | Bronze |
| MR70357051815 | 15 | 7 | 15 | 5x100 | 56.1 | Gloss Titanium |
| MR70366053868 | 16 | 6 | 68 | 5x130 | 78.1 | Gloss Titanium |
| MR70366568890 | 16 | 6.5 | 90 | 6x180 | 138.9 | Gloss Titanium |
| MR70368060800 | 16 | 8 | 0 | 6x5.5 | 106.25 | Gloss Titanium |
| MR70377563850 | 17 | 7.5 | 50 | 6x130 | 84.1 | Gloss Titanium |
| MR70378550800 | 17 | 8.5 | 0 | 5x5 | 71.5 | Gloss Titanium |
| MR70378516800 | 17 | 8.5 | 0 | 6x135 | 87 | Gloss Titanium |
| MR70378560800 | 17 | 8.5 | 0 | 6x5.5 | 106.25 | Gloss Titanium |
| MR70378558835 | 17 | 8.5 | 35 | 5x150 | 110.5 | Gloss Titanium |
| MR70378560835 | 17 | 8.5 | 35 | 6x5.5 | 106.25 | Gloss Titanium |
| MR70379050812N | 17 | 9 | -12 | 5x5 | 71.5 | Gloss Titanium |
| MR70379055812N | 17 | 9 | -12 | 5x5.5 | 108 | Gloss Titanium |
| MR70379060812N | 17 | 9 | -12 | 6x5.5 | 106.25 | Gloss Titanium |
| MR70379080812N | 17 | 9 | -12 | 8x6.5 | 130.81 | Gloss Titanium |
| MR70357051515 | 15 | 7 | 15 | 5x100 | 56.1 | Matte Black |
| MR70366053568 | 16 | 6 | 68 | 5x130 | 78.1 | Matte Black |
| MR70366568590 | 16 | 6.5 | 90 | 6x180 | 138.9 | Matte Black |
| MR70368060500 | 16 | 8 | 0 | 6x5.5 | 106.25 | Matte Black |
| MR70377553550 | 17 | 7.5 | 50 | 5x130 | 78.1 | Matte Black |
| MR70377556550 | 17 | 7.5 | 50 | 5x160 | 65 | Matte Black |
| MR70377563550 | 17 | 7.5 | 50 | 6x130 | 84.1 | Matte Black |
| MR70378550500 | 17 | 8.5 | 0 | 5x5 | 71.5 | Matte Black |
| MR70378558500 | 17 | 8.5 | 0 | 5x150 | 110.5 | Matte Black |
| MR70378516500 | 17 | 8.5 | 0 | 6x135 | 87 | Matte Black |
| MR70378560500 | 17 | 8.5 | 0 | 6x5.5 | 106.25 | Matte Black |
| MR70378580500 | 17 | 8.5 | 0 | 8x6.5 | 130.81 | Matte Black |
| MR70378587500 | 17 | 8.5 | 0 | 8x170 | 130.81 | Matte Black |
| MR70378550525 | 17 | 8.5 | 25 | 5x5 | 71.5 | Matte Black |
| MR70378558535 | 17 | 8.5 | 35 | 5x150 | 110.5 | Matte Black |
| MR70378516525 | 17 | 8.5 | 25 | 6x135 | 87 | Matte Black |
| MR70378560535 | 17 | 8.5 | 35 | 6x5.5 | 106.25 | Matte Black |
| MR70379050512N | 17 | 9 | -12 | 5x5 | 71.5 | Matte Black |
| MR70379055512N | 17 | 9 | -12 | 5x5.5 | 108 | Matte Black |
| MR70379060512N | 17 | 9 | -12 | 6x5.5 | 106.25 | Matte Black |
| MR70379080512N | 17 | 9 | -12 | 8x6.5 | 130.81 | Matte Black |
