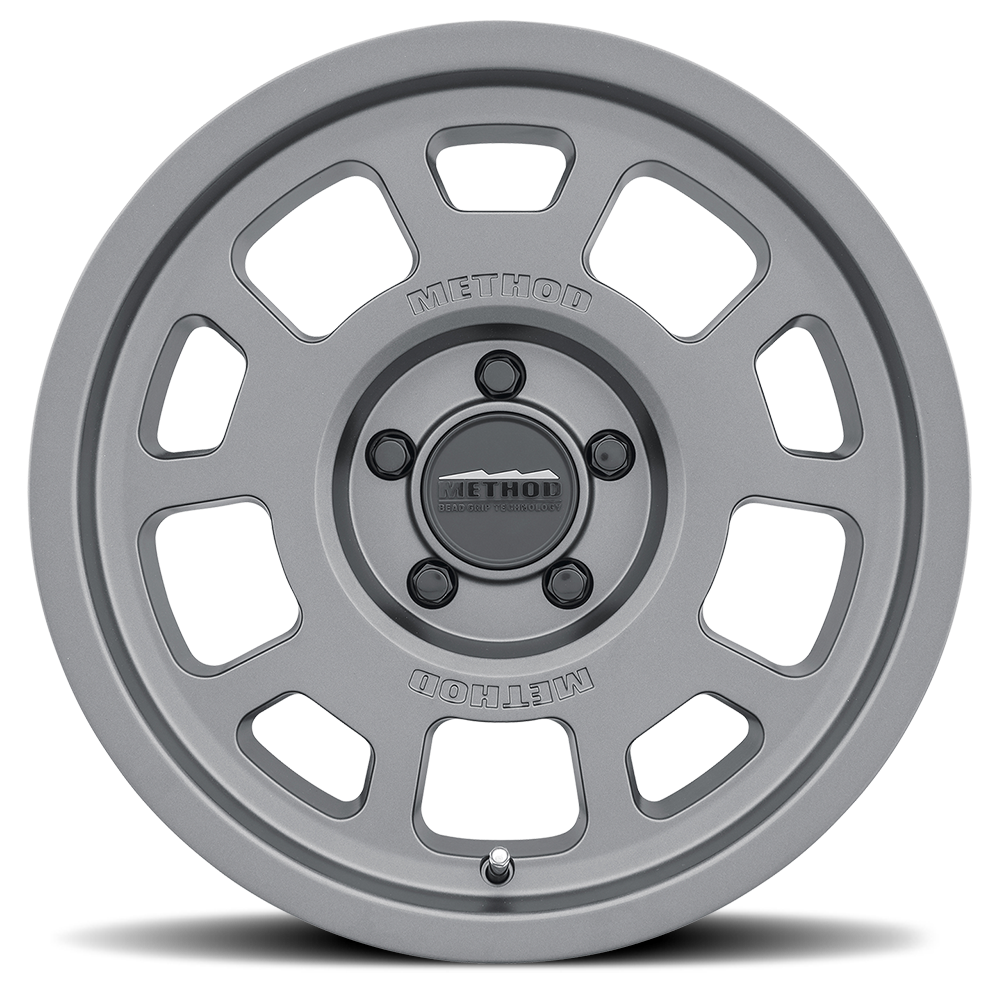

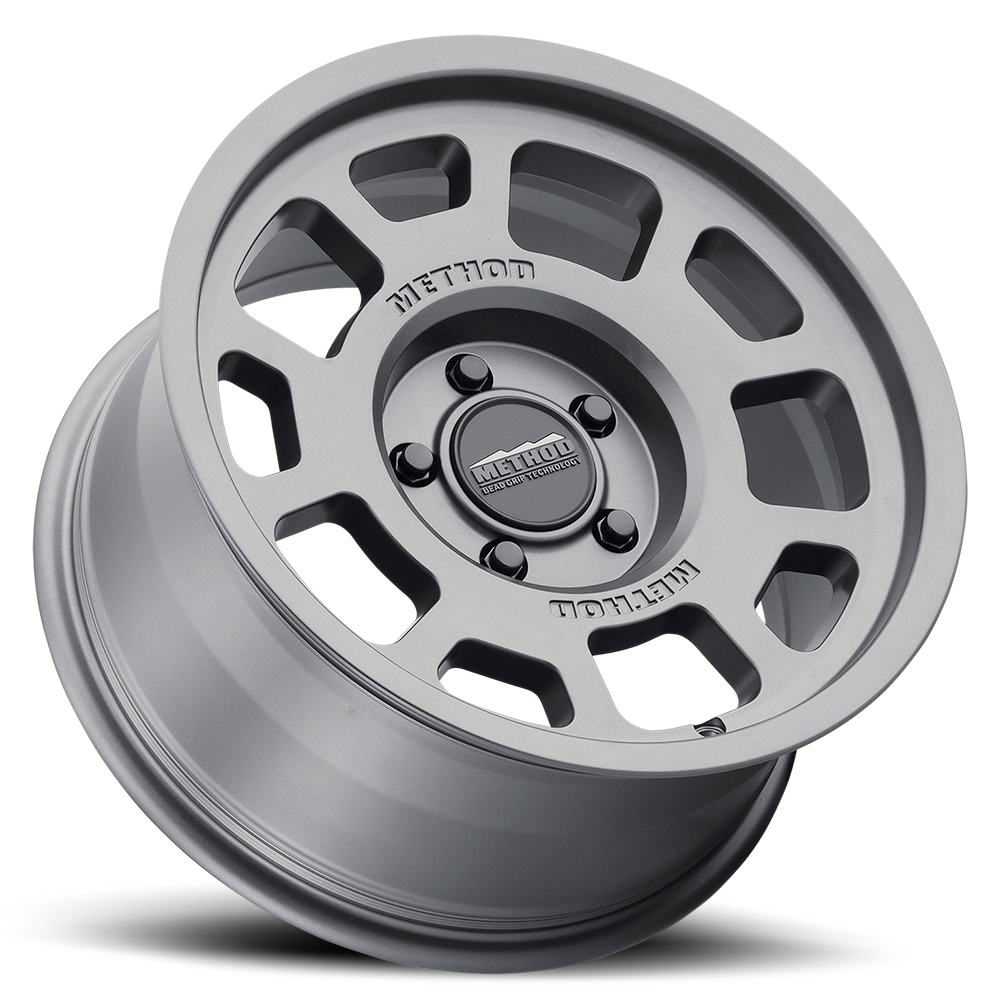

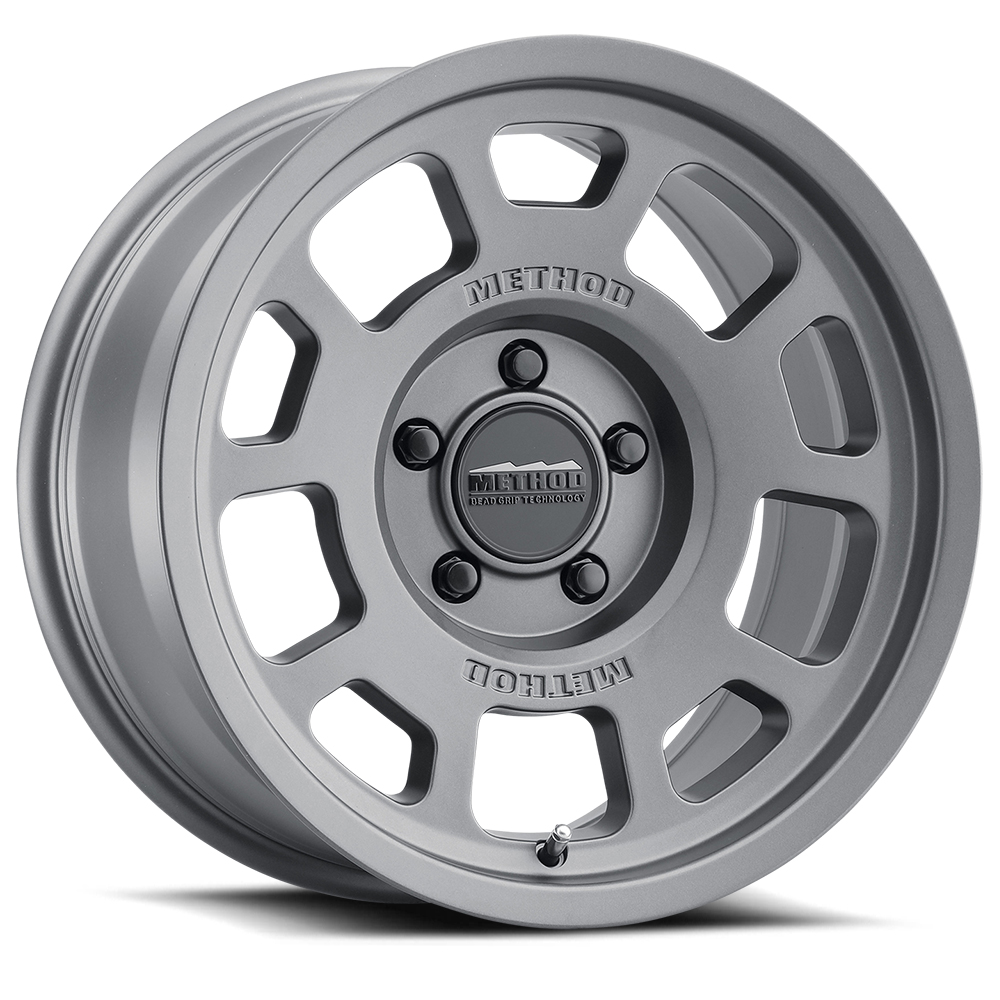

MR705 Bead Grip (TT)
The 705 Bead Grip® wheel features a bold split 5-spoke, 10 windowed design with adventure and exploration in mind. It has been developed to handle the toughest trails, roughest deserts, or your next overland adventure.
The Bead Grip® technology allows deflation of tires down to pressures that previously would have required beadlock wheels to make sure tires didn’t debead. It’s advantageous to reduce tire inflation pressure while off-roading to increase a tire’s contact patch surface area for better traction on loose surfaces as well as improve ride comfort by effectively reducing the spring rate of the tire.
DETAILS
- Patented Bead Grip® technology engages tire bead for increased grip at low tire pressures
- Solid A356 aluminum with T6 heat treatment construction
- Split 5-Spoke, 10 windowed design with debossed METHOD logo on face
- Aggressive safety hump on bead seats further prevents debeading
- Reinforced inner lip taken from MRW race wheel increases strength
- Snap-in center cap with embossed METHOD Bead Grip® logo.
- Push-through center cap with embossed METHOD Bead Grip® logo for 8 lug applications
- Hub centric fitments for common applications
- Industry’s best lifetime structural warranty
- Strong 2650 lbs. to 3640 lbs. load ratings
Wheel Specs
Part Number | Diameter | Width | Offset (mm) | Bolt Pattern | Centre Bore | Finish |
---|---|---|---|---|---|---|
MR70578550500 | 17 | 8.5 | 0 | 5x5 | 71.5 | Matte Black |
MR70578550525 | 17 | 8.5 | 25 | 5x5 | 71.5 | Matte Black |
MR70578558500 | 17 | 8.5 | 0 | 5x150 | 110.5 | Matte Black |
MR70578558535 | 17 | 8.5 | 35 | 5x150 | 110.5 | Matte Black |
MR70578562500 | 17 | 8.5 | 0 | 6x120 | 67 | Matte Black |
MR70578562520 | 17 | 8.5 | 20 | 6x120 | 67 | Matte Black |
MR70578516500 | 17 | 8.5 | 0 | 6x135 | 87 | Matte Black |
MR70578516525 | 17 | 8.5 | 25 | 6x135 | 87 | Matte Black |
MR70578560500 | 17 | 8.5 | 0 | 6x5.5 | 106.25 | Matte Black |
MR70578560535 | 17 | 8.5 | 35 | 6x5.5 | 106.25 | Matte Black |
MR70578580500 | 17 | 8.5 | 0 | 8x6.5 | 130.81 | Matte Black |
MR70578587500 | 17 | 8.5 | 0 | 8x170 | 130.81 | Matte Black |
MR70578588500 | 17 | 8.5 | 0 | 8x180 | 130.81 | Matte Black |
MR70589058525 | 18 | 9 | 25 | 5x150 | 110.5 | Matte Black |
MR70589016518 | 18 | 9 | 18 | 6x135 | 87 | Matte Black |
MR70589060500 | 18 | 9 | 0 | 6x5.5 | 106.25 | Matte Black |
MR70589060518 | 18 | 9 | 18 | 6x5.5 | 106.25 | Matte Black |
MR70589080518 | 18 | 9 | 18 | 8x6.5 | 130.81 | Matte Black |
MR70589087518 | 18 | 9 | 18 | 8x170 | 130.81 | Matte Black |
MR70589088518 | 18 | 9 | 18 | 8x180 | 130.81 | Matte Black |
MR70578550800 | 17 | 8.5 | 0 | 5x5 | 71.5 | Titanium |
MR70578550825 | 17 | 8.5 | 25 | 5x5 | 71.5 | Titanium |
MR70578558800 | 17 | 8.5 | 0 | 5x150 | 110.5 | Titanium |
MR70578558835 | 17 | 8.5 | 35 | 5x150 | 110.5 | Titanium |
MR70578562800 | 17 | 8.5 | 0 | 6x120 | 67 | Titanium |
MR70578562820 | 17 | 8.5 | 20 | 6x120 | 67 | Titanium |
MR70578516800 | 17 | 8.5 | 0 | 6x135 | 87 | Titanium |
MR70578516825 | 17 | 8.5 | 25 | 6x135 | 87 | Titanium |
MR70578560800 | 17 | 8.5 | 0 | 6x5.5 | 106.25 | Titanium |
MR70578560835 | 17 | 8.5 | 35 | 6x5.5 | 106.25 | Titanium |
MR70578580800 | 17 | 8.5 | 0 | 8x6.5 | 130.81 | Titanium |
MR70578587800 | 17 | 8.5 | 0 | 8x170 | 130.81 | Titanium |
MR70578588800 | 17 | 8.5 | 0 | 8x180 | 130.81 | Titanium |
MR70589058825 | 18 | 9 | 25 | 5x150 | 110.5 | Titanium |
MR70589016818 | 18 | 9 | 18 | 6x135 | 87 | Titanium |
MR70589060800 | 18 | 9 | 0 | 6x5.5 | 106.25 | Titanium |
MR70589060818 | 18 | 9 | 18 | 6x5.5 | 106.25 | Titanium |
MR70589080818 | 18 | 9 | 18 | 8x6.5 | 130.81 | Titanium |
MR70589087818 | 18 | 9 | 18 | 8x170 | 130.81 | Titanium |
MR70589088818 | 18 | 9 | 18 | 8x180 | 130.81 | Titanium |
