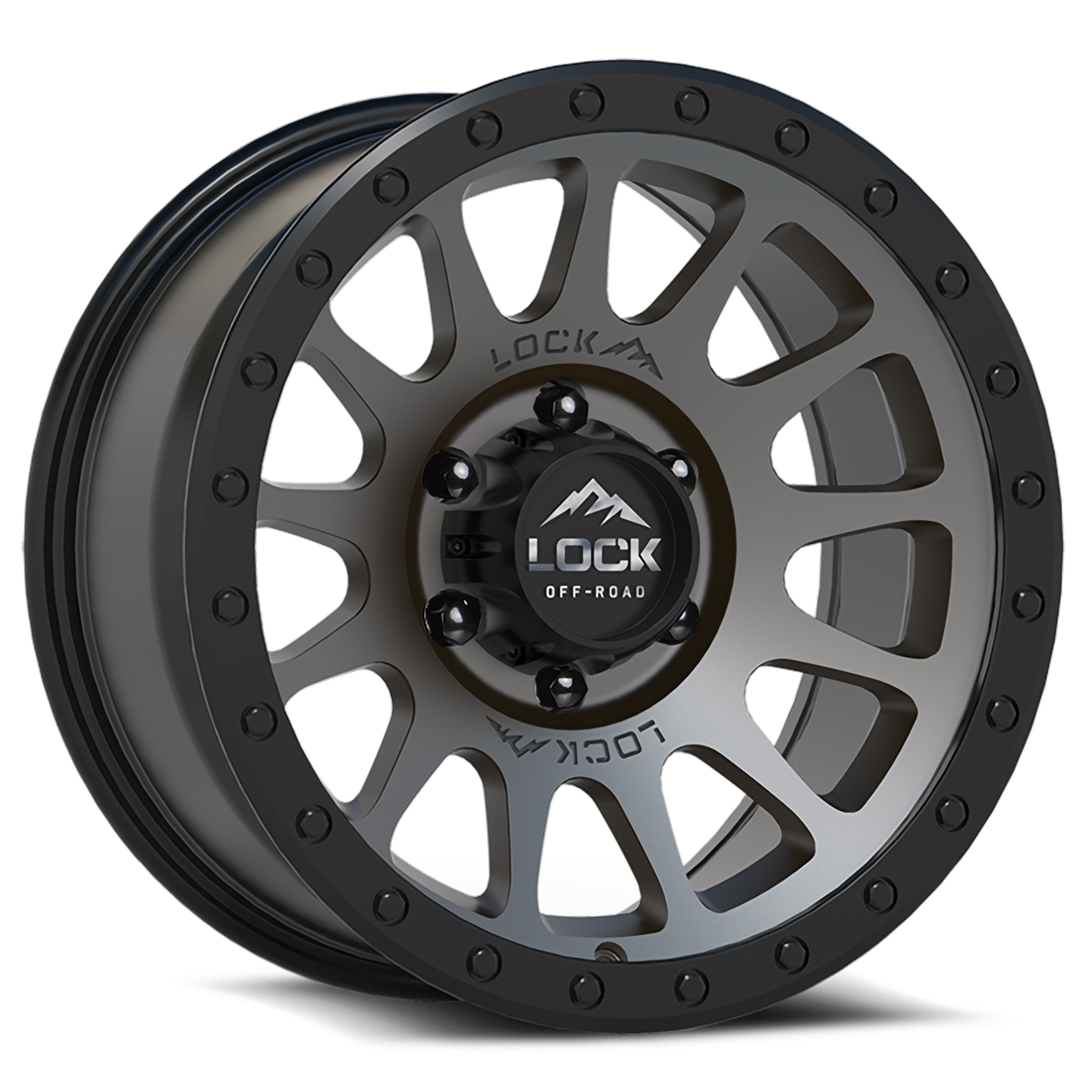

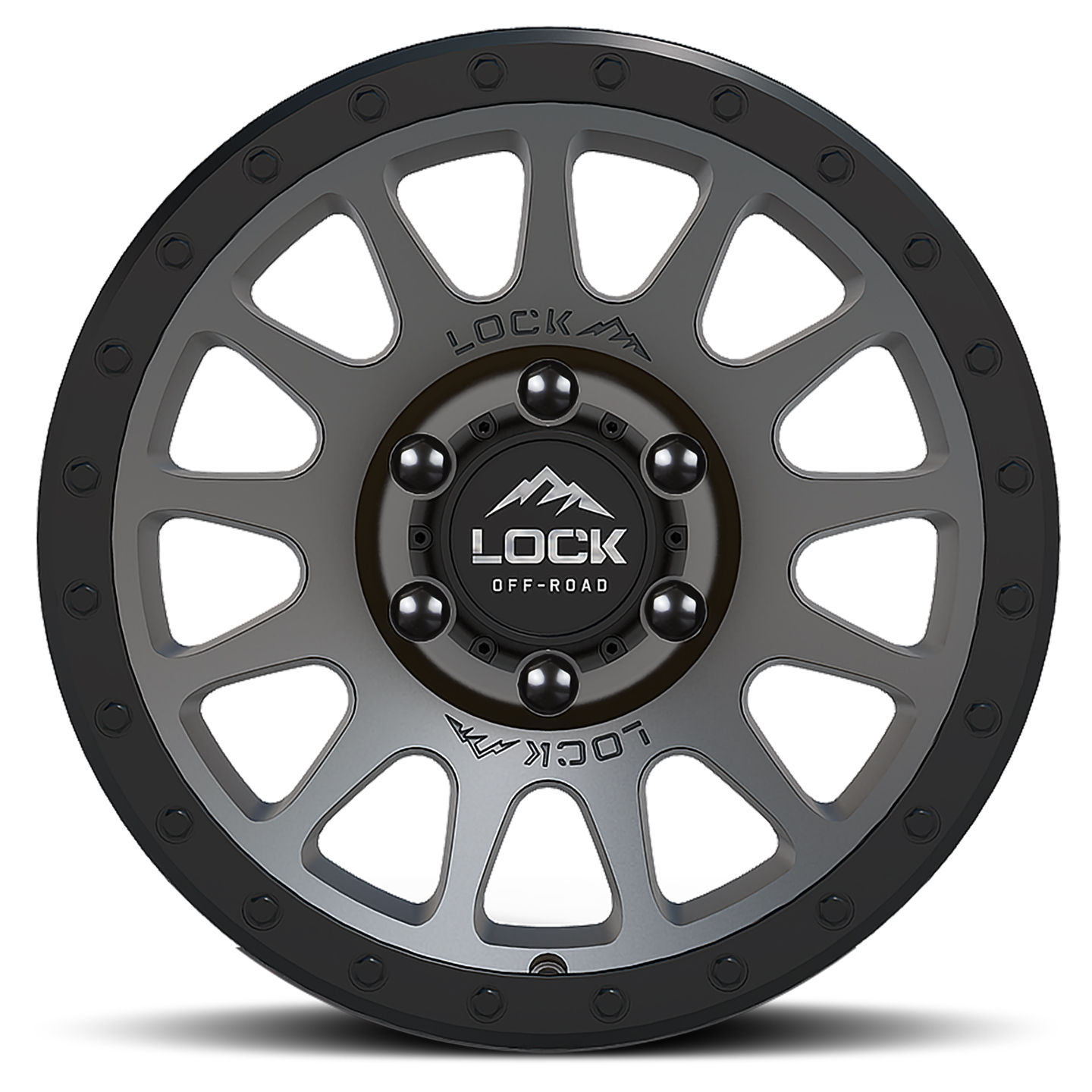

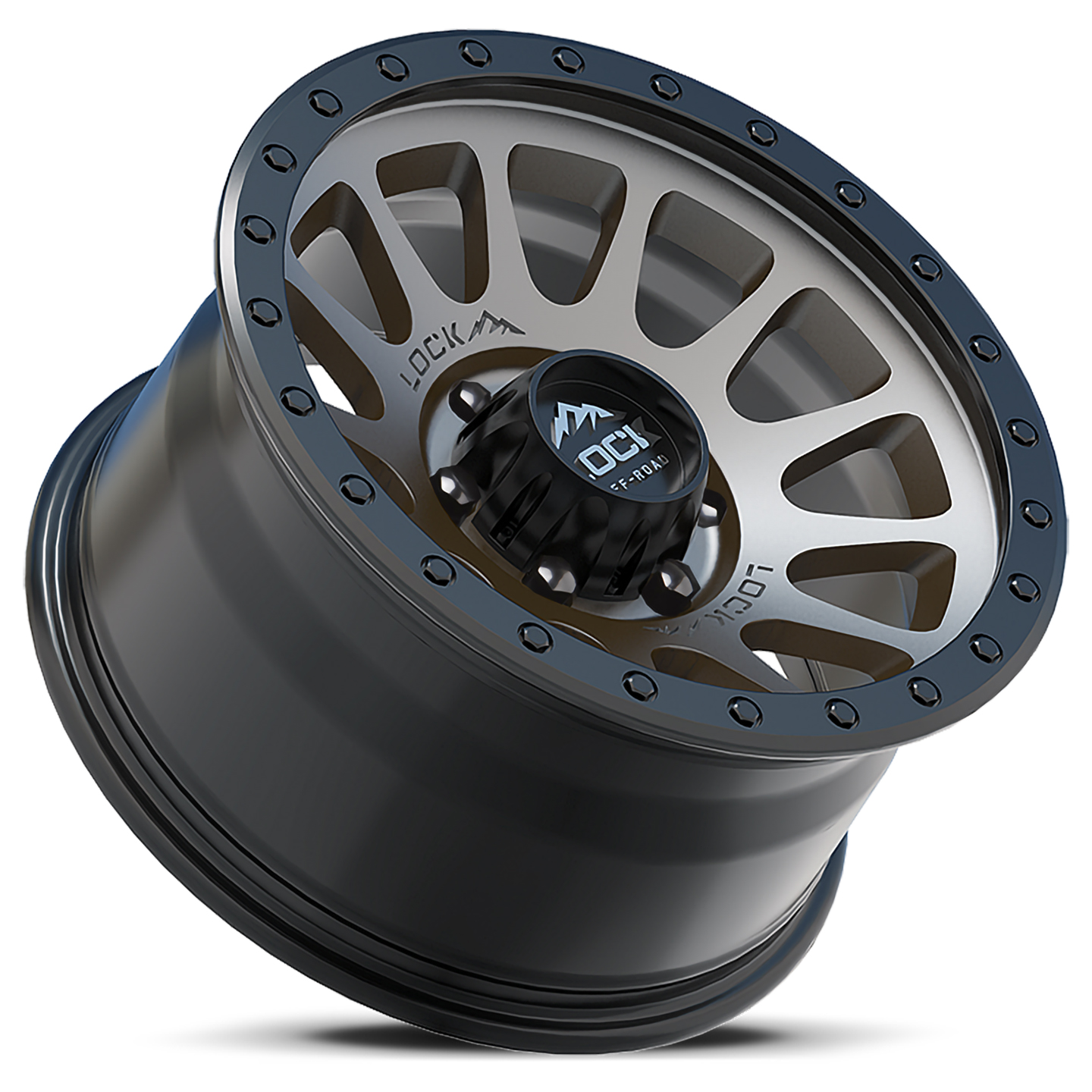

YOSEMITE (GR)
The Lock Yosemite is a breath-taking 13 spoke trendy design featuring the most advanced structural technology for off-road activities. The shallow-pronged multi-fin design allows superior strength with excavation slots for mud/water trenching. Taking the name after California’s most iconic National Park, the Yosemite utilizes an extended custom bolt on center cap offering maximum hub clearance and is offered with three special TACT-coated finishes of Matte Black, Matte Gunmetal, and Matte Bronze provide the ultimate visual appeal & durability to withstand the extreme elements. The Lock Yosemite is offered 17, 18 & 20 inch sizes.
Available Finishes
Wheel Specs
| Part Numbers | Diameter | Width | Offset (MM) | Bolt Pattern | Centre Bore | Finish |
|---|---|---|---|---|---|---|
| YOSEMITE-2157MB | 20 | 10 | -18 | 5x127 | 71.5 | Matte Black w/Matte Black Ring |
| YOSEMITE-2163MB | 20 | 10 | -18 | 6x135 | 87.1 | Matte Black w/Matte Black Ring |
| YOSEMITE-2169MB | 20 | 10 | -18 | 6x139.7 | 106.2 | Matte Black w/Matte Black Ring |
| YOSEMITE-2187MB | 20 | 10 | -18 | 8x170 | 125.2 | Matte Black w/Matte Black Ring |
| YOSEMITE-2963MB | 20 | 9 | 18 | 6x135 | 87.1 | Matte Black w/Matte Black Ring |
| YOSEMITE-2969MB | 20 | 9 | 18 | 6x139.7 | 106.2 | Matte Black w/Matte Black Ring |
| YOSEMITE-7957MB | 17 | 9 | 0 | 5x127 | 71.5 | Matte Black w/Matte Black Ring |
| YOSEMITE-7963MB | 17 | 9 | 0 | 6x135 | 87.1 | Matte Black w/Matte Black Ring |
| YOSEMITE-7969MB | 17 | 9 | 0 | 6x139.7 | 106.2 | Matte Black w/Matte Black Ring |
| YOSEMITE-2157MRMBR | 20 | 10 | -18 | 5x127 | 71.5 | Matte Desrt Bronze w/Matte Black Ring |
| YOSEMITE-2163MRMBR | 20 | 10 | -18 | 6x135 | 87.1 | Matte Desrt Bronze w/Matte Black Ring |
| YOSEMITE-2169MRMBR | 20 | 10 | -18 | 6x139.7 | 106.2 | Matte Desrt Bronze w/Matte Black Ring |
| YOSEMITE-2187MRMBR | 20 | 10 | -18 | 8x170 | 125.2 | Matte Desrt Bronze w/Matte Black Ring |
| YOSEMITE-2963MRMBR | 20 | 9 | 18 | 6x135 | 87.1 | Matte Desrt Bronze w/Matte Black Ring |
| YOSEMITE-2969MRMBR | 20 | 9 | 18 | 6x139.7 | 106.2 | Matte Desrt Bronze w/Matte Black Ring |
| YOSEMITE-7957MRMBR | 17 | 9 | 0 | 5x127 | 71.5 | Matte Desrt Bronze w/Matte Black Ring |
| YOSEMITE-7963MRMBR | 17 | 9 | 0 | 6x135 | 87.1 | Matte Desrt Bronze w/Matte Black Ring |
| YOSEMITE-7969MRMBR | 17 | 9 | 0 | 6x139.7 | 106.2 | Matte Desrt Bronze w/Matte Black Ring |
| YOSEMITE-2157MGMBR | 20 | 10 | -18 | 5x127 | 71.5 | Matte Grey w/Matte Black Ring |
| YOSEMITE-2163MGMBR | 20 | 10 | -18 | 6x135 | 87.1 | Matte Grey w/Matte Black Ring |
| YOSEMITE-2169MGMBR | 20 | 10 | -18 | 6x139.7 | 106.2 | Matte Grey w/Matte Black Ring |
| YOSEMITE-2187MGMBR | 20 | 10 | -18 | 8x170 | 125.2 | Matte Grey w/Matte Black Ring |
| YOSEMITE-2963MGMBR | 20 | 9 | 18 | 6x135 | 87.1 | Matte Grey w/Matte Black Ring |
| YOSEMITE-2969MGMBR | 20 | 9 | 18 | 6x139.7 | 106.2 | Matte Grey w/Matte Black Ring |
| YOSEMITE-7957MGMBR | 17 | 9 | 0 | 5x127 | 71.5 | Matte Grey w/Matte Black Ring |
| YOSEMITE-7963MGMBR | 17 | 9 | 0 | 6x135 | 87.1 | Matte Grey w/Matte Black Ring |
| YOSEMITE-7969MGMBR | 17 | 9 | 0 | 6x139.7 | 106.2 | Matte Grey w/Matte Black Ring |
